The recommended operating temperature range for the 2N3585 is -55°C to 150°C, although it can withstand storage temperatures from -65°C to 200°C.
The 2N3585 is a radiation-hardened device by design, but to ensure its radiation hardness, it's essential to follow proper handling, storage, and assembly procedures to prevent damage from radiation exposure.
The maximum power dissipation for the 2N3585 is 1.5 watts, and it's essential to ensure the device is properly heat-sinked to prevent overheating.
Yes, the 2N3585 is designed for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its radiation hardness, high temperature range, and low noise characteristics.
To troubleshoot issues with the 2N3585, start by checking the device's operating conditions, such as voltage, current, and temperature, and ensure it's properly connected and configured. If issues persist, consult the datasheet and application notes or contact Microsemi Corporation's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N3585 Overview

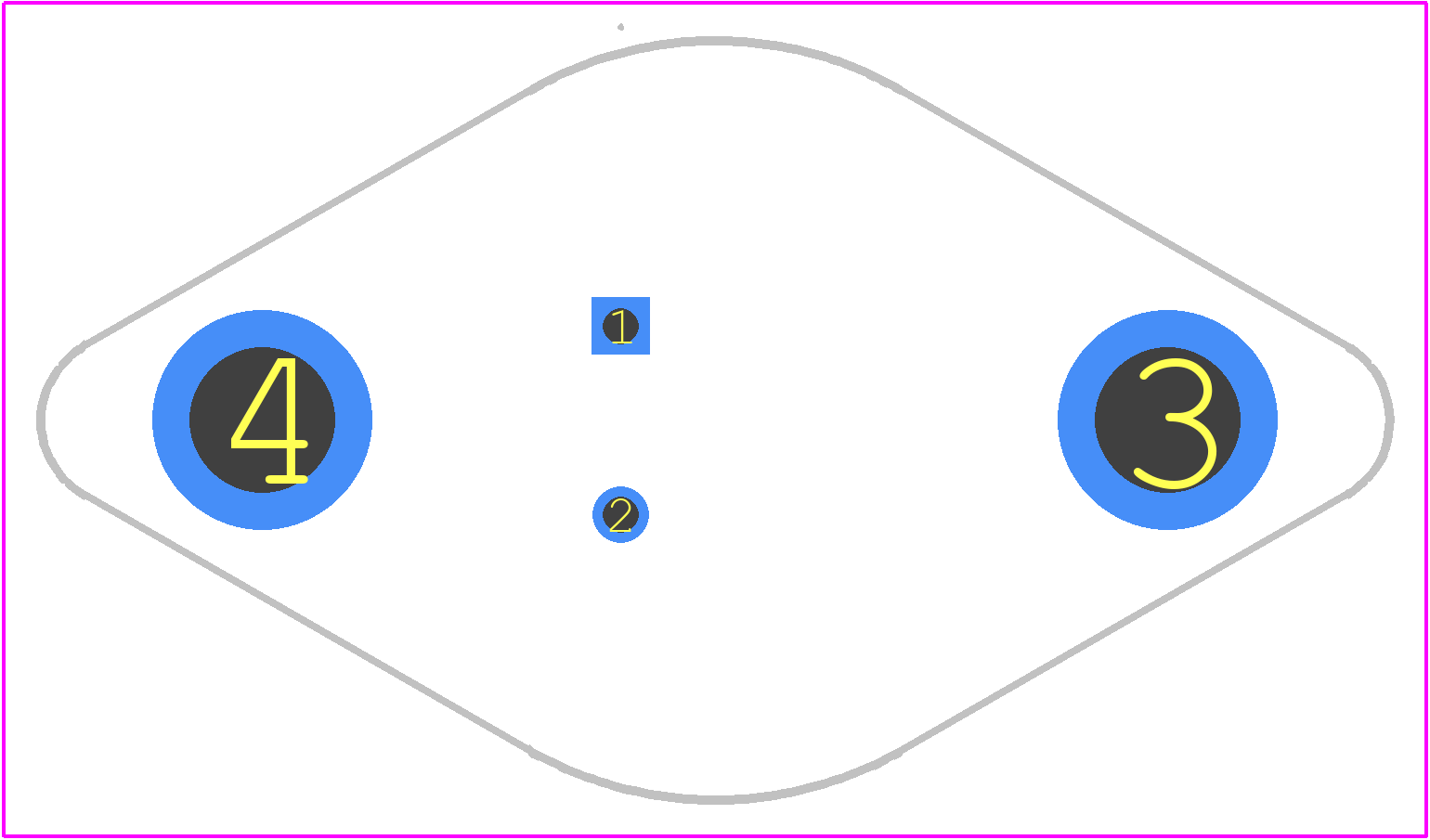

Use the download button to access the 2N3585 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N358,
or try a keyword search, such as Other Transistors
