2N3791 - Motorola

2N3791 Details

• Manufacturer Part Number:

  2N3791

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.95

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  10 A

• Collector-Emitter Voltage-Max:

  60 V

• Configuration:

  SINGLE

• DC Current Gain-Min (hFE):

  30

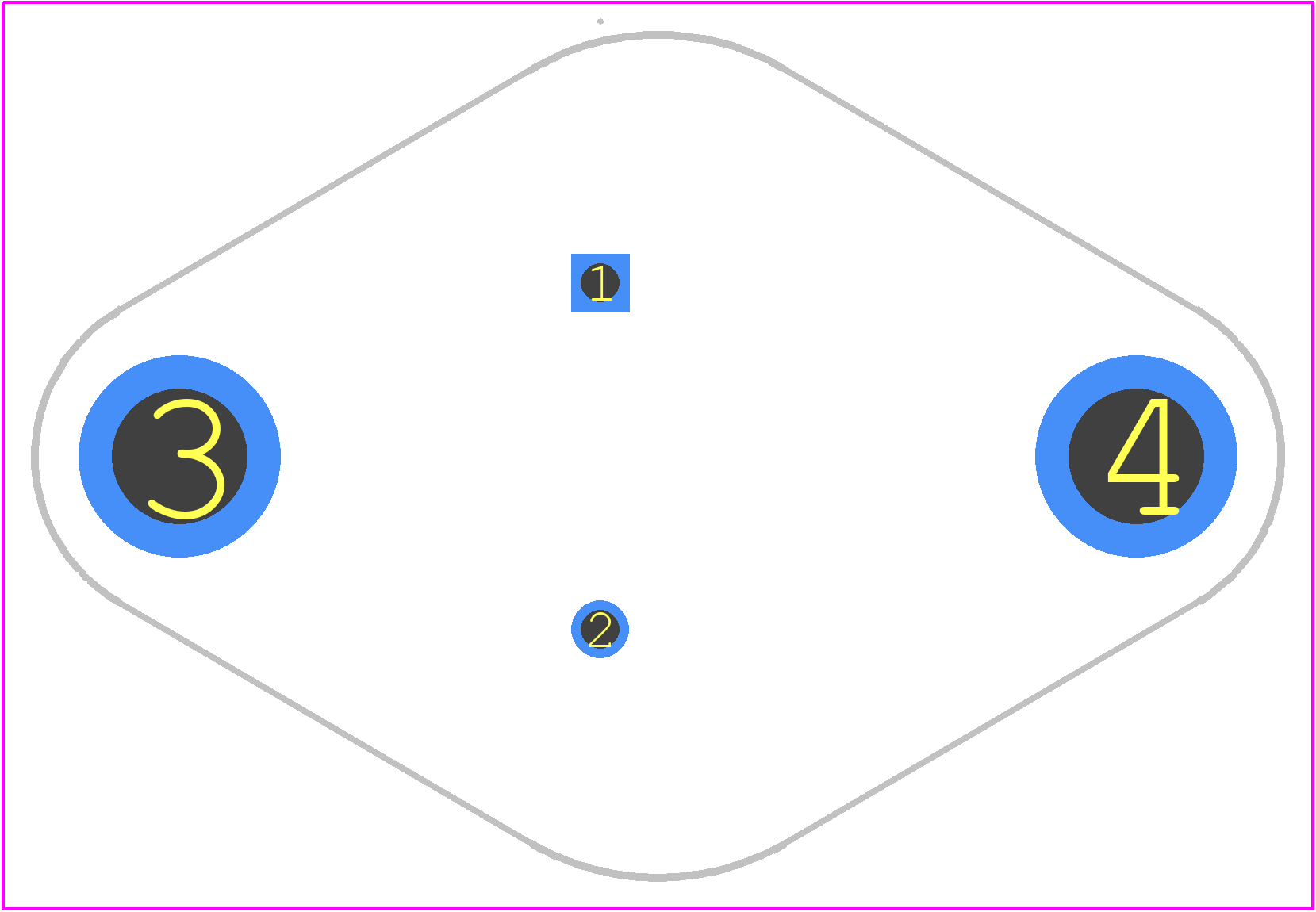

• JEDEC-95 Code:

  TO-204AA

• JESD-30 Code:

  O-MBFM-P2

• JESD-609 Code:

  e0

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Package Body Material:

  METAL

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  PNP

• Power Dissipation Ambient-Max:

  150 W

• Power Dissipation-Max (Abs):

  150 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  4 MHz

• VCEsat-Max:

  1 V
