The recommended operating temperature range for the 2N6031 is -55°C to 150°C, although it can withstand storage temperatures up to 200°C.
To ensure proper biasing, the 2N6031 requires a minimum of 10V between the gate and source terminals, and a maximum of 20V between the drain and source terminals. Additionally, the gate-source voltage should be limited to ±20V to prevent damage.
The maximum allowable power dissipation for the 2N6031 is 125W, assuming a case temperature of 25°C. However, this value can be derated based on the actual operating temperature and other factors.
Yes, the 2N6031 can be used in switching applications, but it is not optimized for high-frequency switching. It has a relatively high gate-source capacitance, which can lead to increased switching losses. However, it can be used in low-frequency switching applications, such as in power supplies or motor control circuits.
To protect the 2N6031 from ESD, it is recommended to handle the device with proper ESD precautions, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected package. Additionally, the device should be connected to a ground plane or other ESD protection circuitry to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N6031 Overview

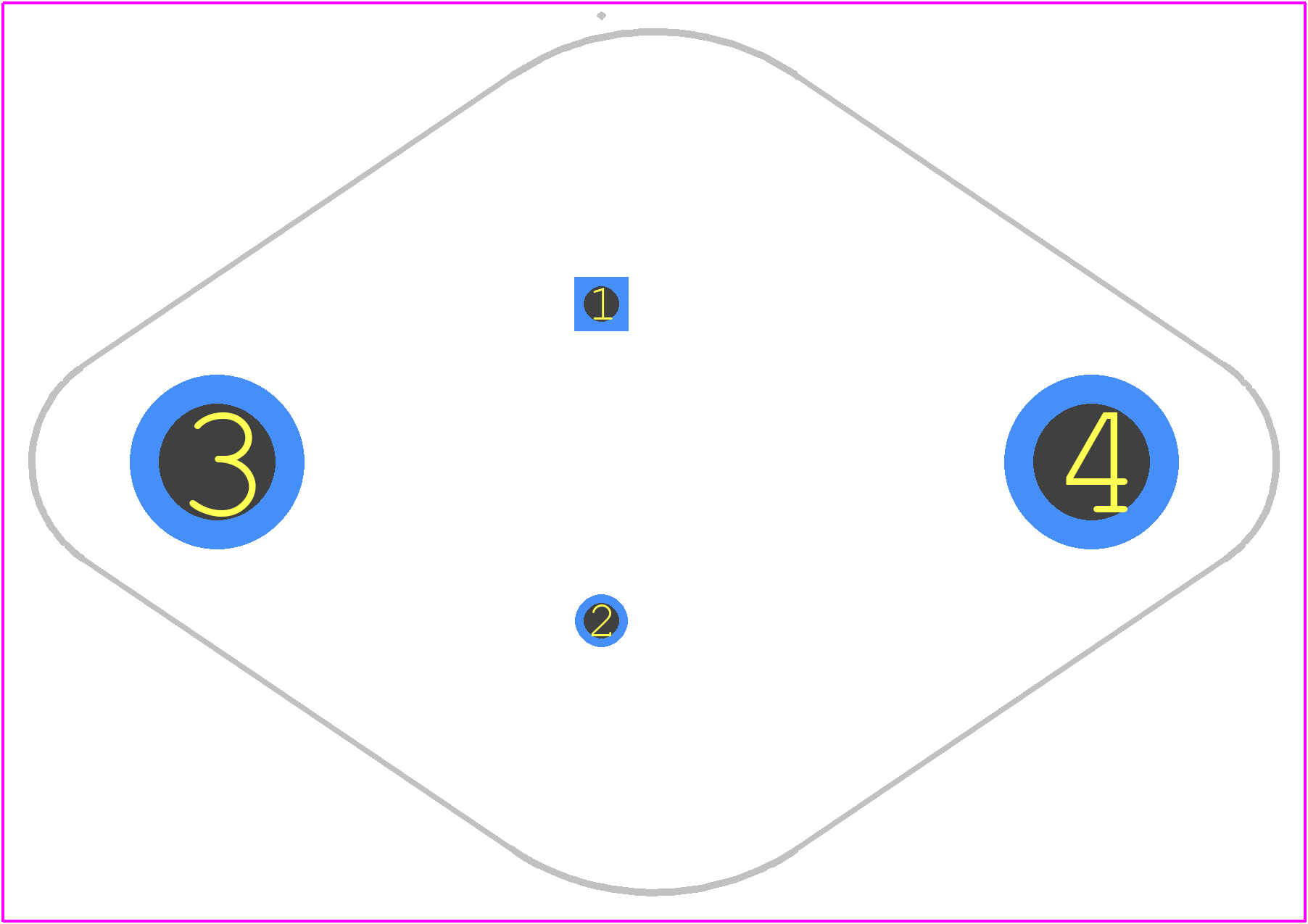

Use the download button to access the 2N6031 schematic symbol, PCB footprint, and 3D model.
