The maximum safe operating area (SOA) for the 2N6284 is not explicitly stated in the datasheet. However, it can be estimated based on the device's thermal and electrical characteristics. A safe operating area can be defined as the region where the device can operate without exceeding its maximum ratings. For the 2N6284, this would typically be limited by the maximum junction temperature (Tj) of 150°C, the maximum collector-emitter voltage (Vce) of 400V, and the maximum collector current (Ic) of 10A.
To ensure the 2N6284 is properly biased for linear operation, you should follow these guidelines: 1) Choose a suitable collector-emitter voltage (Vce) that is within the recommended operating range. 2) Select a base-emitter voltage (Vbe) that is within the recommended range (typically around 0.7V). 3) Ensure the base current (Ib) is sufficient to maintain the desired collector current (Ic). 4) Use a suitable biasing network, such as a voltage divider or a current mirror, to establish a stable operating point.
The recommended heatsink for the 2N6284 depends on the specific application and the power dissipation requirements. However, as a general guideline, a heatsink with a thermal resistance (Rth) of around 1-2°C/W is recommended. This can be achieved using a heatsink with a surface area of around 10-20 cm² and a thickness of around 1-2 mm. Additionally, applying a thermal interface material (TIM) between the device and the heatsink can help to reduce the thermal resistance.
While the 2N6284 is primarily designed for linear applications, it can be used in switching applications with some caution. However, it's essential to ensure that the device is operated within its safe operating area (SOA) and that the switching frequency is not too high (typically < 100 kHz). Additionally, the device's switching characteristics, such as the turn-on and turn-off times, may not be as fast as those of dedicated switching transistors.
To protect the 2N6284 from electrostatic discharge (ESD), follow these guidelines: 1) Handle the device by the body, not the leads. 2) Use an anti-static wrist strap or mat when handling the device. 3) Store the device in an anti-static package or bag. 4) Use ESD-protected equipment and tools when assembling the device into a circuit. 5) Consider adding ESD protection components, such as diodes or resistors, to the circuit design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N6284 Overview

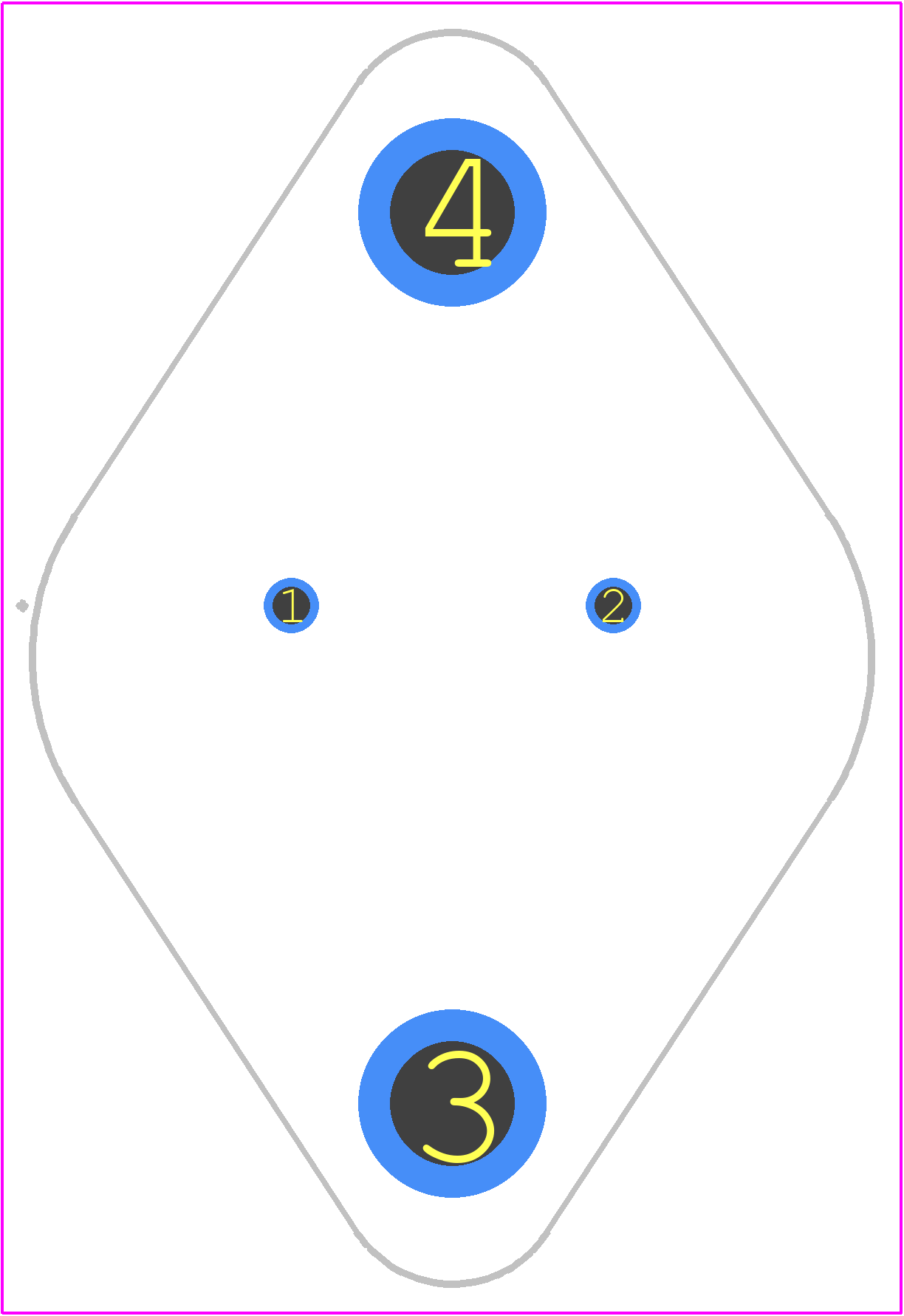

Use the download button to access the 2N6284 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N628,
or try a keyword search, such as Power Bipolar Transistors
