The maximum safe operating area (SOA) for the 2N6284G is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. As a general guideline, the SOA is typically limited by the device's maximum junction temperature, which is 150°C for the 2N6284G.
To ensure the 2N6284G is properly biased for linear operation, you should ensure that the base-emitter voltage (VBE) is within the recommended range (typically 0.6-0.8V) and that the collector-emitter voltage (VCE) is sufficient to maintain a linear operating region. Additionally, the base current should be limited to prevent saturation.
For optimal thermal management, it is recommended to use a heat sink with a thermal resistance of less than 10°C/W. The PCB layout should also be designed to minimize thermal resistance and ensure good heat dissipation. A minimum of 1 oz copper thickness and a thermal via array can help to reduce thermal resistance.
To protect the 2N6284G from electrostatic discharge (ESD), it is recommended to use ESD protection devices such as TVS diodes or ESD suppressors on the input and output pins. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
The 2N6284G should be stored in a dry, cool place away from direct sunlight and moisture. The devices should be handled with anti-static wrist straps or mats to prevent ESD damage. It is also recommended to use anti-static packaging materials and to avoid touching the device's pins or leads.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N6284G Overview

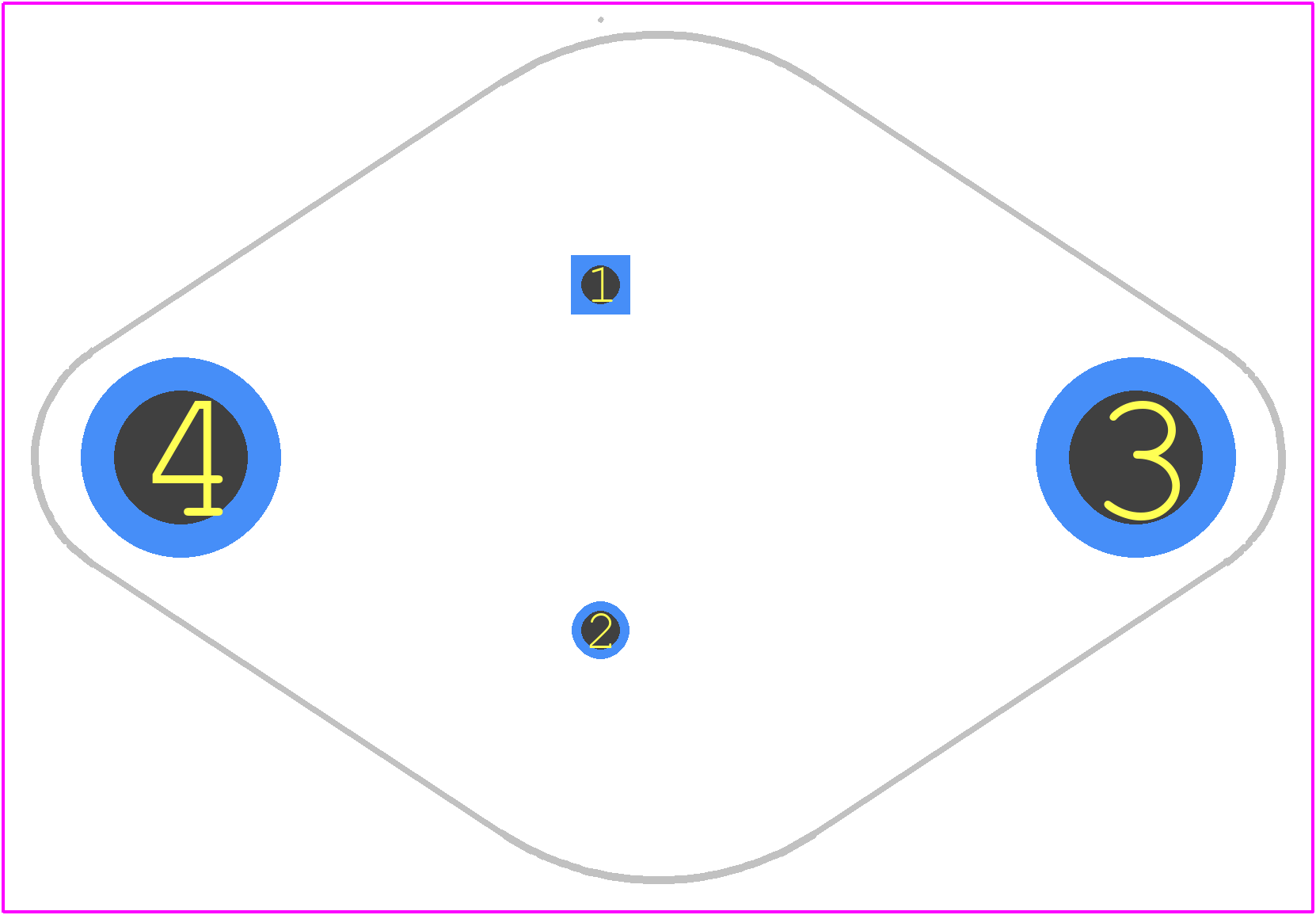

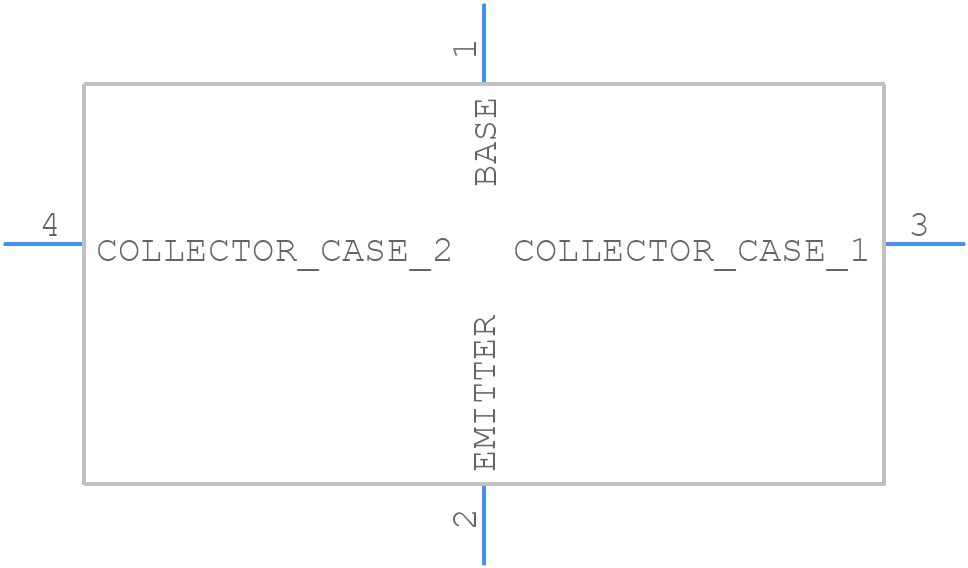

Use the download button to access the 2N6284G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N628,
or try a keyword search, such as Power Bipolar Transistors
