Part Image

2N7052 - onsemi

Description: NPN Darlington Transistor

Download 2N7052 Model

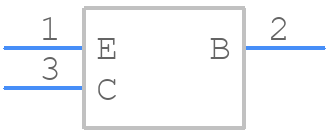

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2N7052 - onsemi PCB footprint - Other - Other - TO127P254X635-3
click to zoom
3D Models
2N7052 - onsemi  - 3D model - Other - TO127P254X635-3
click to zoom

2N7052 Details

  • Manufacturer Part Number:

    2N7052

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-03-17

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Collector Current-Max (IC):

    1.5 A

  • Collector-Base Capacitance-Max:

    10 pF

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    1000

  • JEDEC-95 Code:

    TO-92

  • JESD-30 Code:

    O-PBCY-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BOX

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    0.625 W

  • Power Dissipation-Max (Abs):

    0.625 W

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    BOTTOM

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    200 MHz

  • VCEsat-Max:

    1.5 V

2N7052 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 2N7052 is -55°C to 150°C, although it can withstand storage temperatures up to 200°C.
  • To ensure proper biasing, the 2N7052 requires a Vgs of 0V to 5V, with a recommended Vgs of 2.5V for optimal performance. Additionally, the drain-source voltage (Vds) should be within the recommended range of 0V to 60V.
  • The maximum current rating for the 2N7052 is 2A, although it's recommended to operate at a maximum continuous drain current of 1.5A to ensure reliability and prevent overheating.
  • To protect the 2N7052 from ESD, it's recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-sensitive packaging and storage materials. Additionally, the device should be connected to a ground plane or other ESD protection circuitry during assembly and testing.
  • The typical turn-on and turn-off time for the 2N7052 is around 10-20 ns, although this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

2N7052 Overview

Use the download button to access the 2N7052 schematic symbol, PCB footprint, and 3D model.
