ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 45CEL
Capacitance:
330 µF
Capacitor Type:
TANTALUM CAPACITOR
Dielectric Material:
TANTALUM (SOLID POLYMER)
ESR:
18 mΩ
Height:
1.8 mm
JESD-609 Code:
e4
Leakage Current:
0.0825 mA
Length:
7.3 mm
Mounting Feature:
SURFACE MOUNT
Negative Tolerance:
20%
Number of Terminals:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Shape:
RECTANGULAR PACKAGE
Package Style:
SMT
Packing Method:
TR, EMBOSSED, 7/13 INCH
Polarity:
POLARIZED
Positive Tolerance:
20%
Rated (DC) Voltage (URdc):
2.5 V
Ripple Current:
2800 mA
Size Code:
2917
Surface Mount:
YES
Tan Delta:
0.1
Terminal Finish:
Palladium/Gold (Pd/Au)
Terminal Shape:
J BEND
Width:
4.3 mm
2R5THE330MI Frequently Asked Questions (FAQs)
The recommended land pattern for the 2R5THE330MI can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
When designing a PCB with the 2R5THE330MI, it's essential to ensure that the PCB layout and spacing meet the high voltage rating requirements. This includes maintaining a safe creepage distance between the component and other conductive elements, using a sufficient solder mask, and avoiding any sharp edges or points that could cause electrical discharge.
The derating curve for the 2R5THE330MI can be found in the datasheet or in a separate application note from Panasonic Electronic Components. The derating curve provides information on how to reduce the component's voltage and current ratings based on ambient temperature, allowing engineers to ensure safe and reliable operation in their specific application.
To select the correct capacitor for your application, consider factors like the maximum ripple current, equivalent series resistance (ESR), and operating frequency. The 2R5THE330MI datasheet provides information on these parameters, and engineers can use online tools or consult with capacitor selection guides to ensure the chosen capacitor meets their specific requirements.
The reliability and lifespan expectations for the 2R5THE330MI can be found in the datasheet or in a separate reliability report from Panasonic Electronic Components. The report typically provides information on the component's expected lifespan, failure rates, and reliability testing results, allowing engineers to make informed decisions about their design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2R5THE330MI Overview

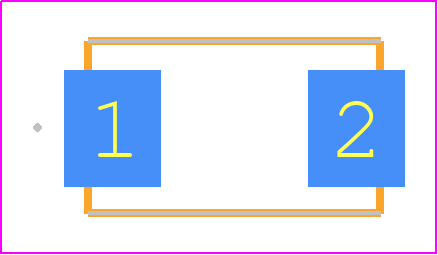

Use the download button to access the 2R5THE330MI schematic symbol, PCB footprint, and 3D model.
