ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias to the ground plane to ensure efficient heat dissipation. A thermal resistance of 10°C/W or less is recommended.
To ensure SOA, monitor the device's voltage, current, and power dissipation. Use the datasheet's SOA graph to determine the maximum allowable voltage and current for a given temperature. Implement overvoltage, overcurrent, and thermal protection mechanisms to prevent damage.
Store the device in a dry, cool place with a temperature range of -40°C to 125°C and humidity below 60%. Avoid exposure to direct sunlight, moisture, and contamination.
Yes, the 2SAR572D3FRATL is qualified for automotive and high-reliability applications. ROHM provides a dedicated automotive grade (Grade 1) and a high-reliability grade (Grade 0) for this device, which meet the requirements of AEC-Q101 and other industry standards.
Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-protective package. Avoid touching the device's pins or leads to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2SAR572D3FRATL Overview

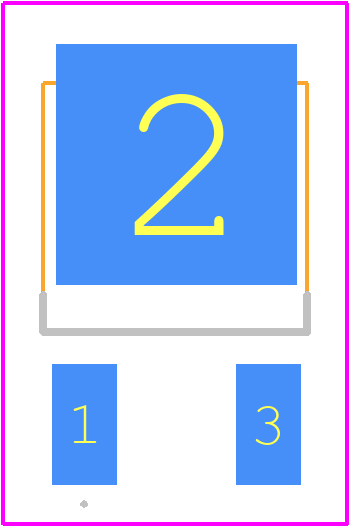

Use the download button to access the 2SAR572D3FRATL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2SAR5,
or try a keyword search, such as Power Bipolar Transistors
