2SC0535T2A1-33 footprint, schematic symbol and 3D model by Power Integrations

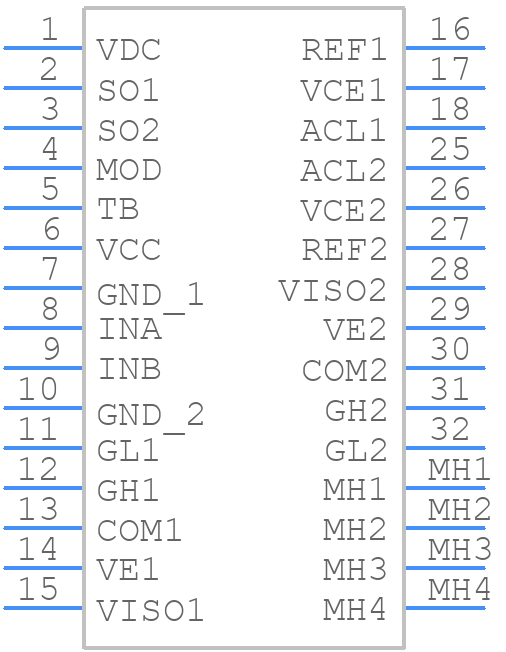

Symbol

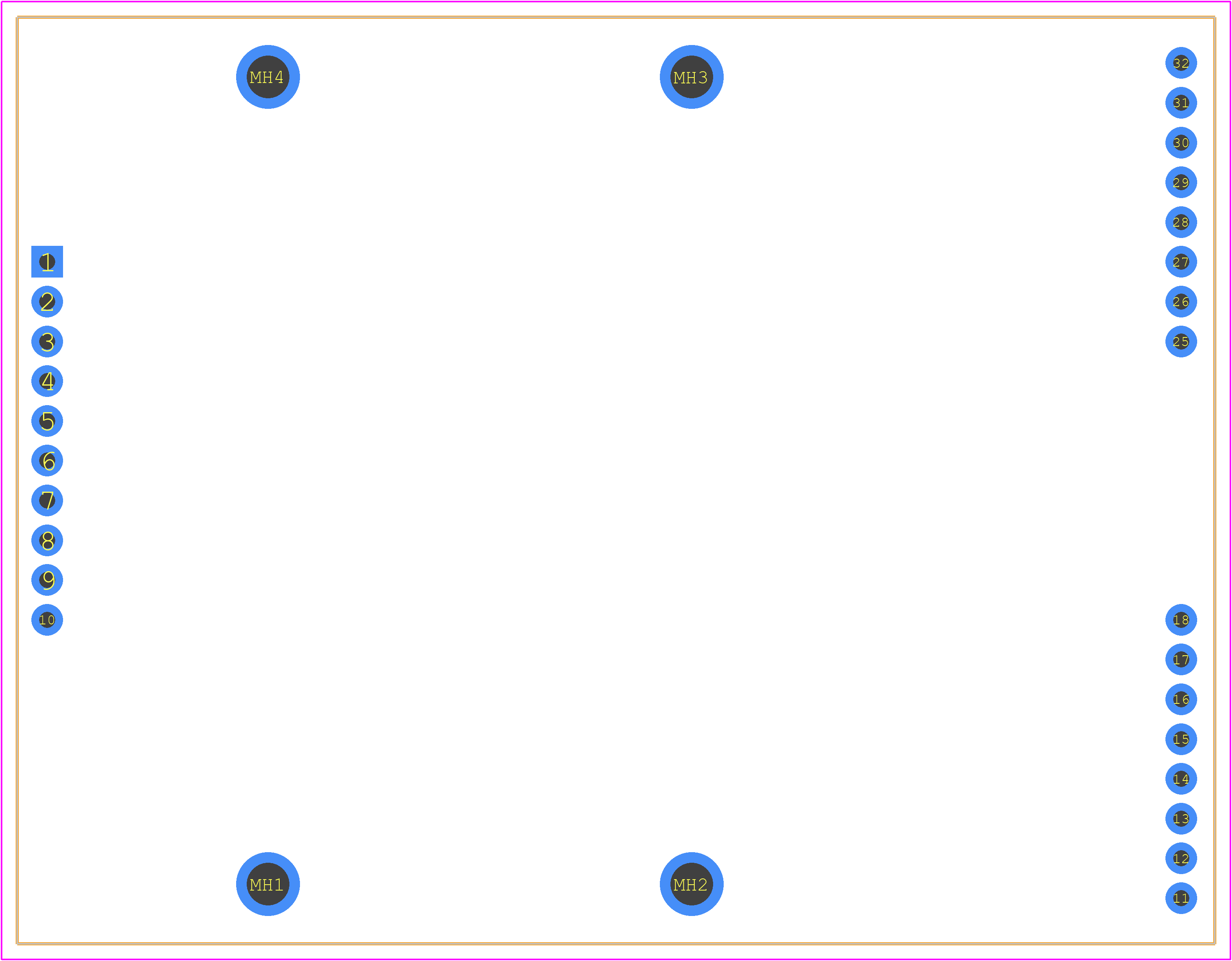

PCB Footprints

3D Models

2SC0535T2A1-33 Details

The maximum operating temperature range for the 2SC0535T2A1-33 is -40°C to 125°C.
Proper cooling can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
A recommended PCB layout for the 2SC0535T2A1-33 includes a solid ground plane, a separate voltage plane for the input and output, and minimizing the length of the high-current paths.
Overvoltage and undervoltage protection can be achieved by using a voltage supervisor or a dedicated overvoltage protection IC, and ensuring that the input voltage is within the recommended range of 85-265VAC.
The recommended input capacitor value for the 2SC0535T2A1-33 is 1-2uF, with a voltage rating of at least 400V.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 2SC0535T2A1-33 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2SC05, or try a keyword search, such as MOSFET Drivers
