2SC0535T2A1C-33 - Power Integrations

Description: Gate Drivers Conformal Coded PI Gate Driver Only

Download 2SC0535T2A1C-33 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 2SC0535T2A1C-33 model

Email notifications will be applied after download.

Send part feedback

Symbol

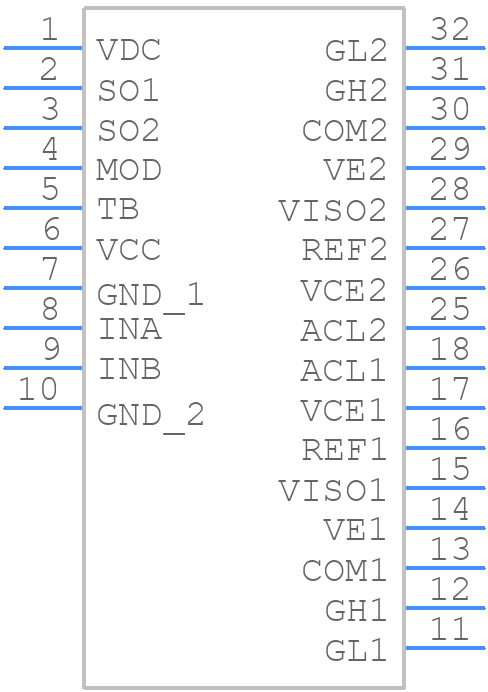

2SC0535T2A1C-33 - Power Integrations - PCB symbol

PCB Footprints

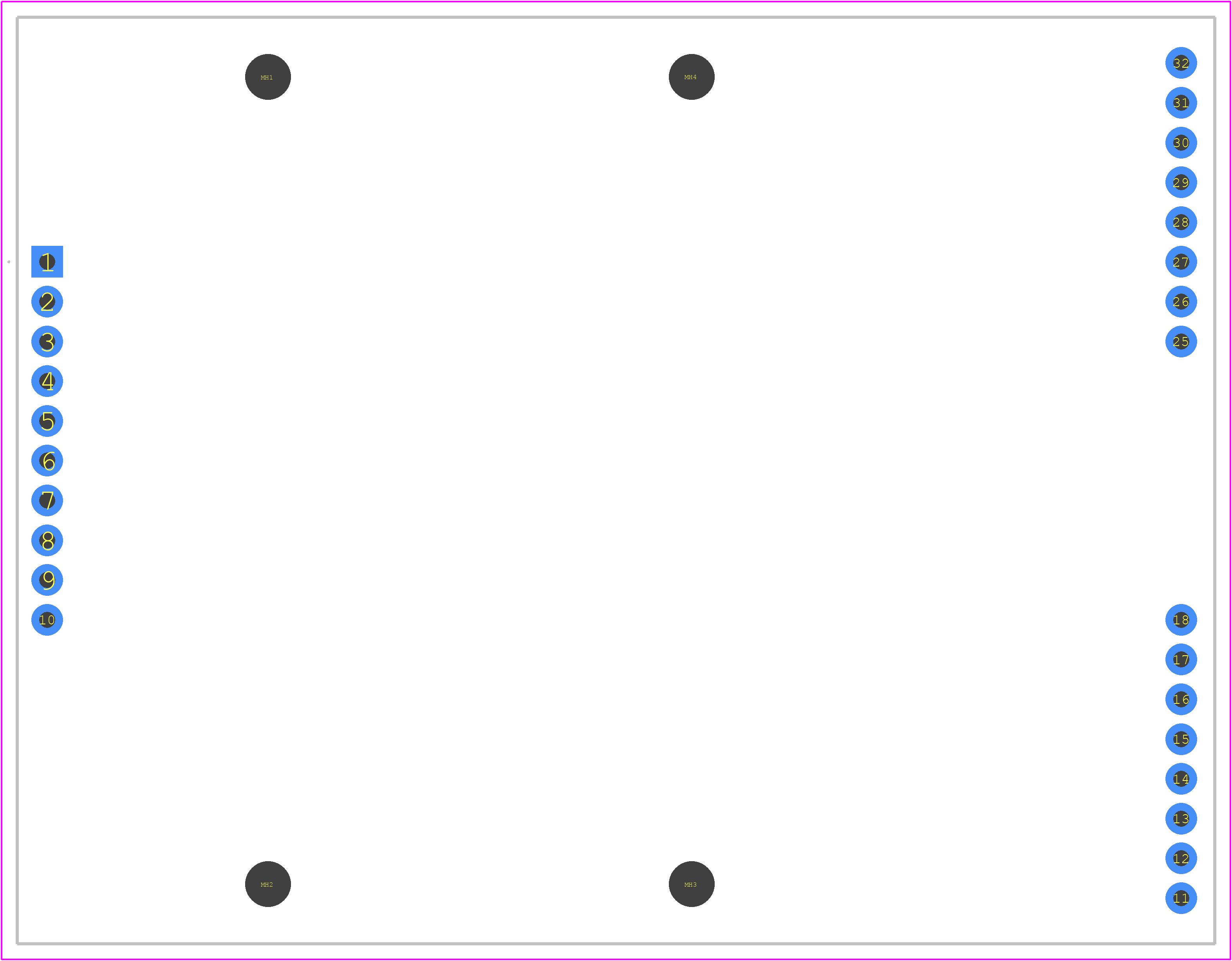

2SC0535T2A1C-33 - Power Integrations PCB footprint - Other - Other - 2SC0535T2A1C-33-2

3D Models

2SC0535T2A1C-33 - Power Integrations - 3D model - Other - 2SC0535T2A1C-33-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2SC0535T2A1C-33
Part Number 2SC0535T2A1C-33
Manufacturer Power Integrations
Pin Count 26
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 2SC0535T2A1C-33-2
Released Date Nov 30, 2023
Last Modified Date Nov 30, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

2SC0535T2A1C-33 Details

Manufacturer Part Number:
2SC0535T2A1C-33
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Manufacturer:
Power Integrations
YTEOL:
0
Interface IC Type:
BUFFER OR INVERTER BASED IGBT DRIVER

Trust Checks

Community Provided

System Verified

Community Approved

2SC0535T2A1C-33 Overview

Use the download button to access the 2SC0535T2A1C-33 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2SC05, or try a keyword search, such as MOSFET Drivers
