- Part Number 2SC4883A
- Manufacturer SANKEN ELECTRIC CO.
- Pin Count 3
- Part Category Transistor BJT NPN
- Package Category Transistor Outline, Vertical

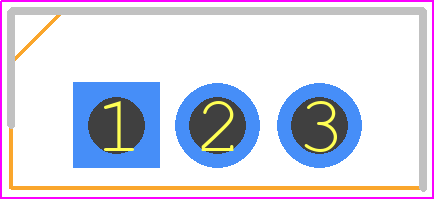

- Footprint Name Transistor Outline, Vertical - FM20 (TO220F)
- Released Date May 30, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
2SC4883A Details
-
Manufacturer Part Number:
2SC4883A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TO-220AB
-
Pin Count:
3
-
ECCN Code:
EAR99
-
Manufacturer:
Sanken Electric Co Ltd
-
YTEOL:
0
-
Case Connection:
ISOLATED
-
Collector Current-Max (IC):
2 A
2SC4883A Frequently Asked Questions (FAQs)
-
The maximum safe operating area (SOA) of the 2SC4883A is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general rule, it's recommended to operate the device within the specified voltage and current ratings to ensure reliable operation.
-
To ensure proper biasing, follow the recommended biasing circuit and component values provided in the datasheet. Additionally, consider the device's current gain (hFE) and base-emitter voltage (VBE) when designing the biasing circuit. It's also important to ensure the device is operated within its specified voltage and current ratings.
-
For optimal thermal performance, it's recommended to use a PCB layout that provides good thermal conductivity and heat dissipation. This can include using thermal vias, thermal pads, and heat sinks. Additionally, ensure the device is mounted securely to the PCB and that the thermal interface material (TIM) is properly applied.
-
Yes, the 2SC4883A can be used in high-frequency applications, but its performance may degrade at very high frequencies due to its transition frequency (fT) and maximum oscillation frequency (fmax). It's essential to consider the device's frequency response and potential parasitic effects when designing high-frequency circuits.
-
To protect the 2SC4883A from ESD, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, design the circuit to include ESD protection devices, such as TVS diodes or ESD protection arrays, to prevent damage from static electricity.
