3-100-406 - SCHURTER

Description: CAD-Model shows variation snap-in mounting 1.7 mm, contact terminal PCB 2.8 mm and Light Pipes N and L side.

Download 3-100-406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-100-406 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

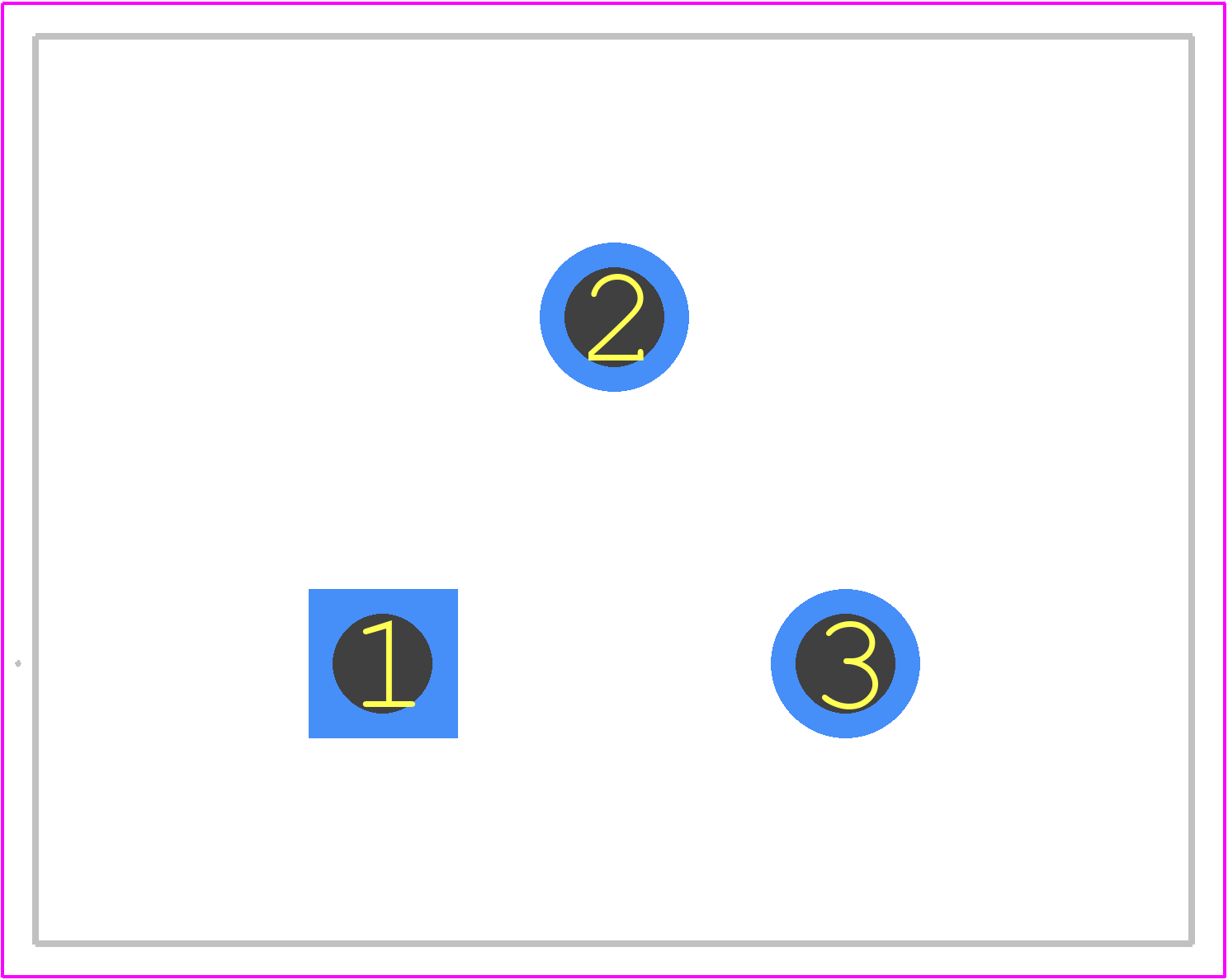

3-100-406 - SCHURTER PCB footprint - Other - Other - 3-100-406-3
click to zoom
3D Models
3-100-406 - SCHURTER - 3D model - Other - 3-100-406-3
click to zoom

3-100-406 Details

  • Manufacturer Part Number:

    3-100-406

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8.4

  • Connector Type:

    MAINS POWER CONNECTOR

3-100-406 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the 3-100-406 is rated for a maximum voltage of 250 VAC, so it's not suitable for high-voltage applications above that rating.
  • No, the 3-100-406 is designed for use with 5x20mm fuses, such as the Schurter UMT 250 or similar types. It may not be compatible with other fuse sizes or types.
  • The operating temperature range of the 3-100-406 is -40°C to +125°C, as specified in the datasheet.
  • Yes, the 3-100-406 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
