3-127-620 footprint, schematic symbol and 3D model by SCHURTER

Symbol

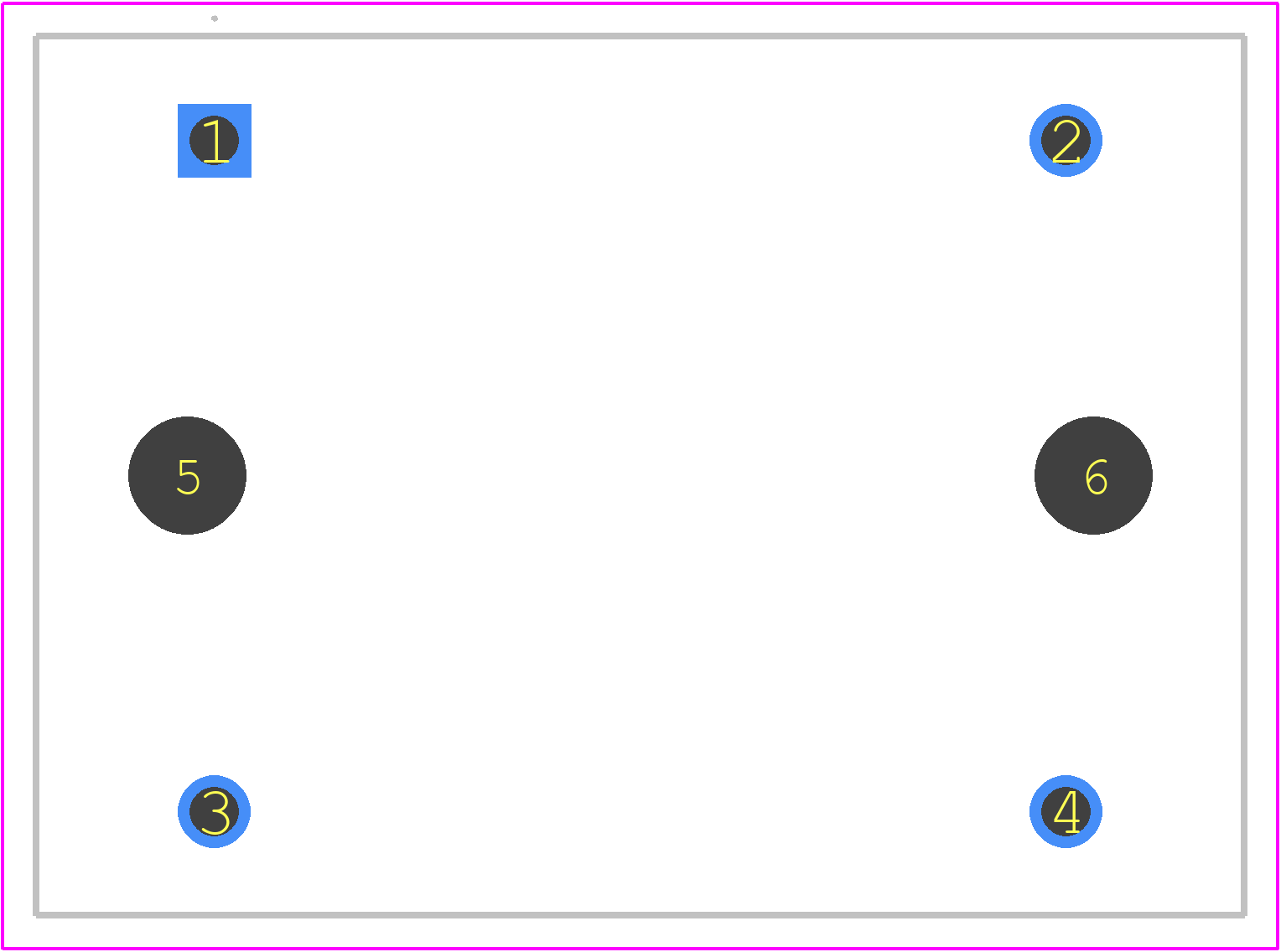

PCB Footprints

3D Models

3-127-620 Details

The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
The 3-127-620 is designed specifically for use with 5x20mm fuses. While it may be possible to use other types of fuses, it's not recommended as it may compromise the safety and performance of the device. Always use the specified fuse type to ensure compliance with safety standards.
The operating temperature range for the 3-127-620 is -40°C to 125°C. However, it's essential to note that the fuse itself may have a different temperature rating, so be sure to check the fuse datasheet for specific information.
While the 3-127-620 is a robust component, it's not specifically designed for high-vibration applications. If you need a fuse holder for a high-vibration environment, consider using a component with additional features such as screw-clamp terminals or a more secure mounting system.
The 3-127-620 has a standard rating for humidity and is not designed for use in wet environments. If you need a fuse holder for a humid or wet environment, consider using a component with a higher ingress protection rating, such as IP67 or higher.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 3-127-620 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 3-127, or try a keyword search, such as Mains Filters
