Schurter recommends a minimum spacing of 2mm between the fuse and other components, and a PCB layout that allows for easy replacement and inspection. A fuse holder or clip is also recommended to secure the fuse in place.
While the 3-127-621 fuse is designed to be robust, it's not specifically designed for high-vibration or high-shock applications. For such applications, Schurter recommends using their fuse series with enhanced vibration and shock resistance, such as the 3-141 series.
The 3-127-621 fuse is rated for operation up to 125°C, but its melting point may be affected by high temperatures. Schurter recommends derating the fuse's current rating by 1.5% per degree Celsius above 85°C to ensure reliable operation.
The 3-127-621 fuse is designed to handle moderate inrush currents, but may not be suitable for applications with extremely high inrush currents. Schurter recommends using their slow-blow fuse series, such as the 3-133 series, for applications with high inrush currents.
Schurter recommends storing the 3-127-621 fuse in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with clean, dry hands or gloves to prevent contamination and damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3-127-621 Overview

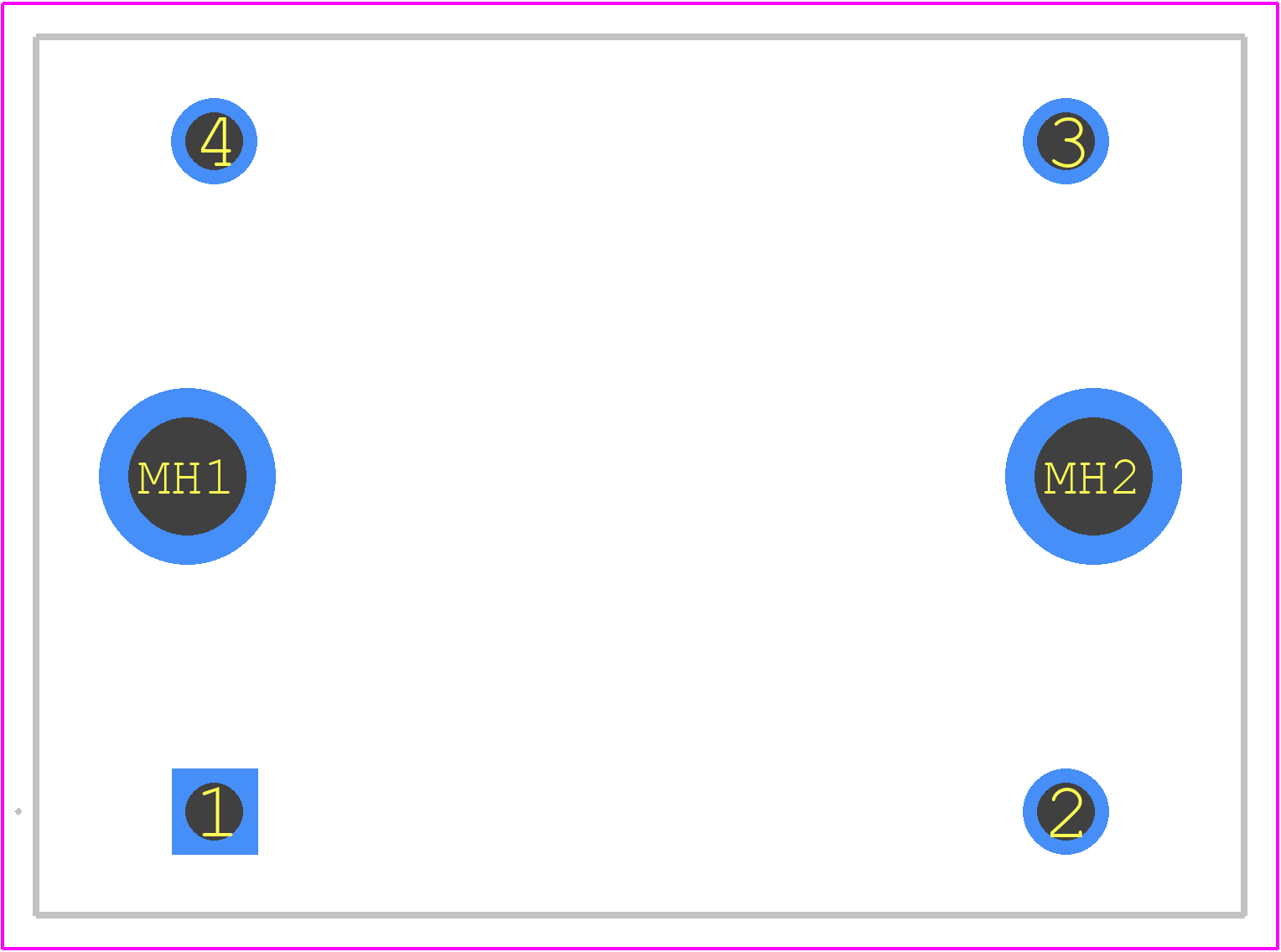

Use the download button to access the 3-127-621 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-127,
or try a keyword search, such as Mains Filters
