3-1415001-2 - TE Connectivity

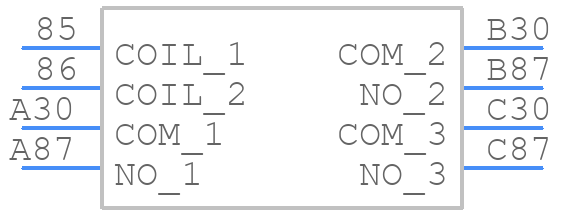

3-1415001-2 Details

• Manufacturer Part Number:

  3-1415001-2

• Brand Name:

  TE Connectivity

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.77

• Body Breadth:

  26.2 mm

• Body Height:

  25.2 mm

• Body Length or Diameter:

  26.2 mm

• Coil Current(DC)-Max:

  0.133 A

• Coil Operate Voltage(DC):

  7.2 V

• Coil Power:

  1600 mW

• Coil Release Voltage(DC):

  1.6 V

• Coil Resistance:

  90 Ω

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  70 A

• Contact (DC) Max Rating R Load:

  70A@12VDC

• Contact Voltage(DC)-Max:

  12 V

• Contact/Output Supply Type:

  DC

• Dielectric Strength Between Coil and Contacts:

  500 Vrms

• Dielectric Strength Between Open Contacts:

  500 Vrms

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

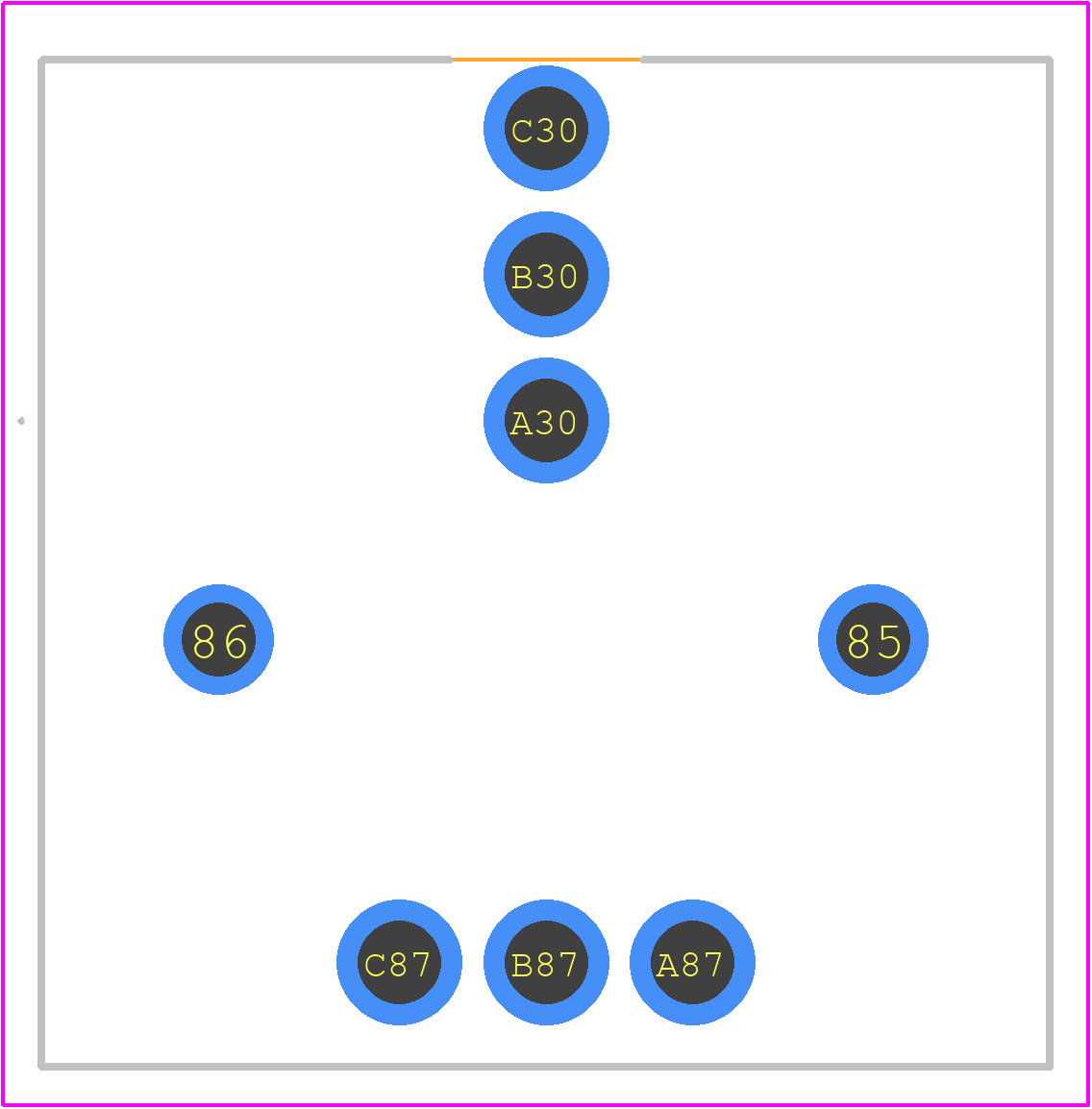

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  4

• Operate Time:

  7 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  26.2mm x 26.2mm x 25.2mm

• Reference Standard:

  UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  2 ms

• Sealing:

  DUST PROOF; IP54; RT1

• Surface Mount:

  NO

• Terminal Length:

  0.0038100076200152403 inch

• Termination Type:

  SOLDER

• Weight:

  38 g
