3-1617752-9 - TE Connectivity

Description: General Purpose Power Relay, DC, Polarized, Monostable, 2 Form C DPDT-CO, 15 A Contact Rating, 28 VDC Coil Voltage, Panel & Printed Circuit Board

Download 3-1617752-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

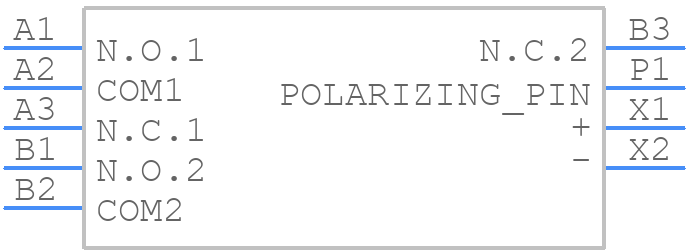

3-1617752-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

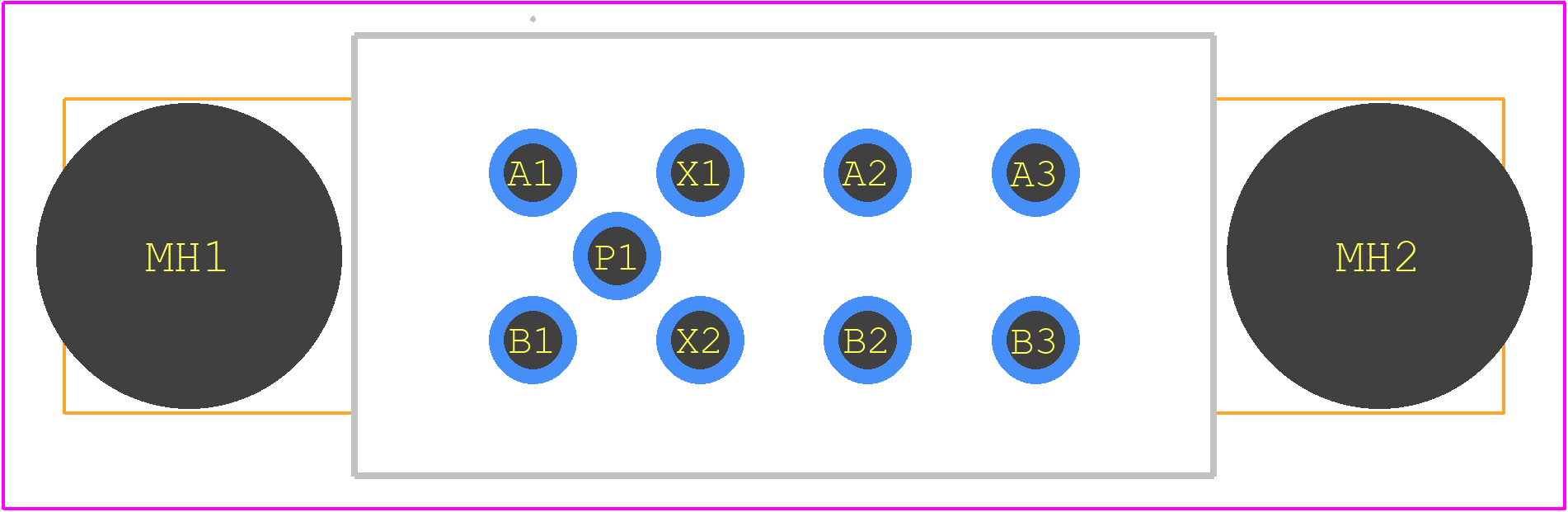

3-1617752-9 - TE Connectivity PCB footprint - Other - Other - 3-1617752-9-1
click to zoom
3D Models
3-1617752-9 - TE Connectivity - 3D model - Other - 3-1617752-9-1
click to zoom

3-1617752-9 Details

  • Manufacturer Part Number:

    3-1617752-9

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Coil Resistance:

    320 Ω

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    15 A

  • Contact Current(DC)-Max:

    15 A

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -70 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER HOOK

3-1617752-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 3-1617752-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 3-1617752-9 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The 3-1617752-9 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 3-1617752-9 connector is part of TE Connectivity's modular connector family and is designed to be compatible with other products in the same family. This allows for flexibility and ease of design in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3-1617752-9 Overview

Use the download button to access the 3-1617752-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-161, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
