- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 3-1734839-2
- Part Number 3-1734839-2
- Manufacturer TE Connectivity
- Pin Count 34
- Part Category Connector
- Package Category Other
- Footprint Name Other - 3-1734839-2-1
- Released Date May 25, 2021
- Pinout / Pin List Click Here (Member Only)
3-1734839-2 Details
-
Manufacturer Part Number:
3-1734839-2
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
0.2 inch
-
Body Depth:
0.08 inch
-
Body Length:
0.844 inch
3-1734839-2 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 3-1734839-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
-
The operating temperature range for the 3-1734839-2 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
-
The 3-1734839-2 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not designed for exposure to harsh chemicals. If you need to use the connector in a chemically harsh environment, you should consult with TE Connectivity or a qualified engineer to determine the best solution.
-
It's not recommended to use the 3-1734839-2 connector with a different wire gauge than specified in the datasheet. The connector is designed to work with specific wire gauges, and using a different gauge may compromise the connector's performance, reliability, and safety. If you need to use a different wire gauge, you should consult with TE Connectivity or a qualified engineer to determine the best solution.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
3-1734839-2 Overview

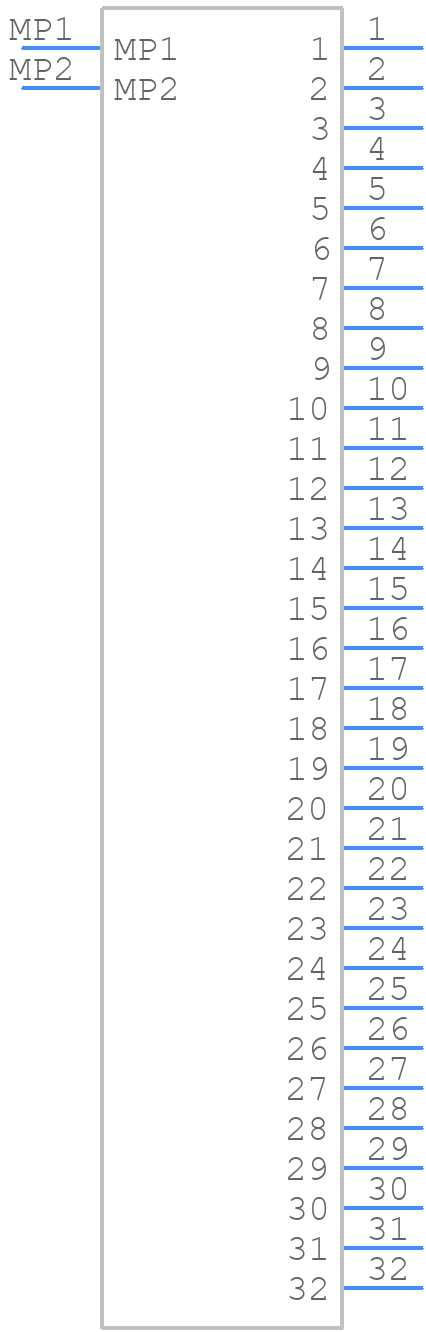

Use the download button to access the 3-1734839-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-173,
or try a keyword search, such as Headers and Edge Type Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
