3-1775333-2 - TE Connectivity

Description: FFC & FPC Connectors ZIF FPC 0.5, 2H, 32P

Download 3-1775333-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

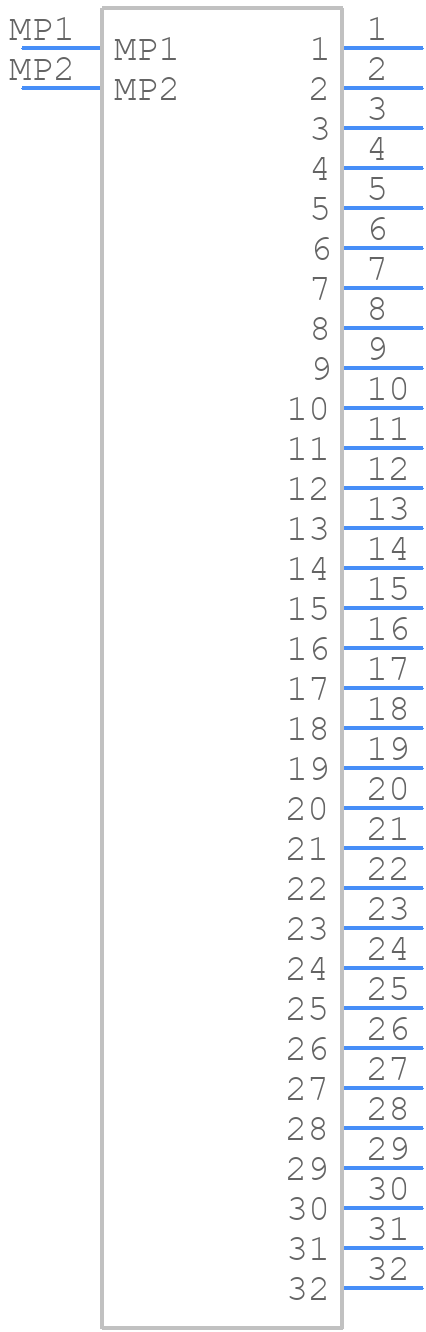

Symbol
3-1775333-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
3-1775333-2 - TE Connectivity PCB footprint - Other - Other - 3-1775333-2-2
click to zoom
3D Models
3-1775333-2 - TE Connectivity - 3D model - Other - 3-1775333-2-2
click to zoom

3-1775333-2 Details

  • Manufacturer Part Number:

    3-1775333-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    0.246 inch

  • Body Depth:

    0.079 inch

  • Body Length:

    0.817 inch

  • Cable Types:

    FFC, FPC

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LCP

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    1u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

3-1775333-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 3-1775333-2 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
  • The 3-1775333-2 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. However, it's not suitable for direct exposure to harsh outdoor environments or immersion in water. For outdoor or harsh environmental applications, consider using connectors with higher IP ratings or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes. However, you should ensure that the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, it's essential to follow proper PCB layout and design guidelines when using the 3-1775333-2 connector. Ensure that the PCB hole size and spacing match the connector's pin layout, and provide adequate clearance around the connector to prevent interference with other components. Consult the TE Connectivity application notes or a qualified engineer for guidance on PCB design.
