3-2172067-2 - TE Connectivity

Description: Body Features: Shell Base Material Brass | Circular Connector Insulation Material Type Polyamide | Shell Plating Material Nickel | Configuration Features: Number of Positions 4 | Number of Power Positions 0 | Contacts Preloaded Yes | Number of Signal Positions 4 | Contact Features: Contact Current Rating (Max) 3 AMP | Reverse Gender Yes | Contact Layout Arrangement Circular | Circular Connector Contact Type Pin | Housing Features: Circular Connector Shell Size 12 | Mechanical Attachment: Polarization Code A

Download 3-2172067-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-2172067-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

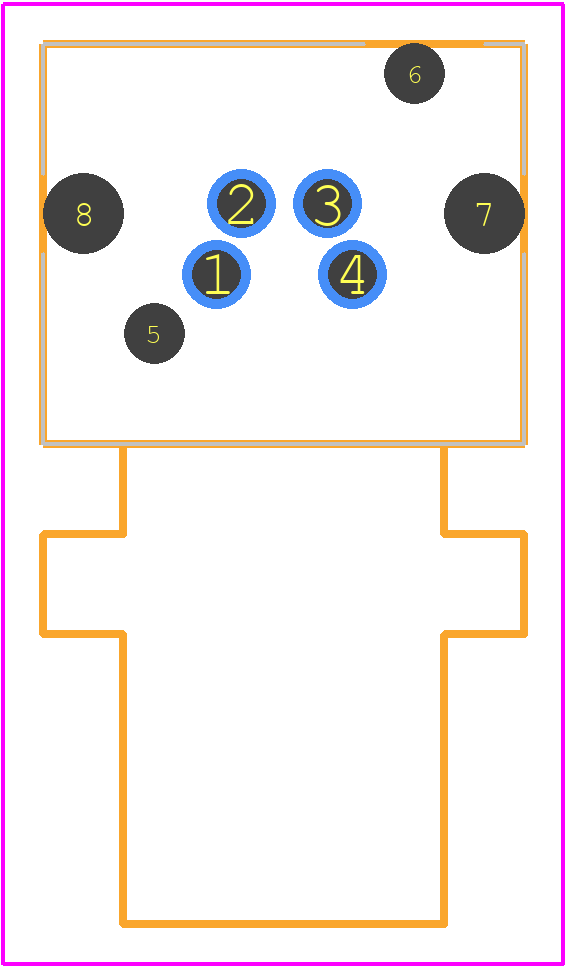

3-2172067-2 - TE Connectivity PCB footprint - Other - Other - 3-2172067-2-1
click to zoom
3D Models
3-2172067-2 - TE Connectivity - 3D model - Other - 3-2172067-2-1
click to zoom

3-2172067-2 Details

  • Manufacturer Part Number:

    3-2172067-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    12

  • Total Number of Contacts:

    4

3-2172067-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 3-2172067-2 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its specifications and to avoid any potential reliability issues.
  • The operating temperature range for the 3-2172067-2 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 3-2172067-2 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for specific environmental conditions.
