3-2260336-0 - TE Connectivity

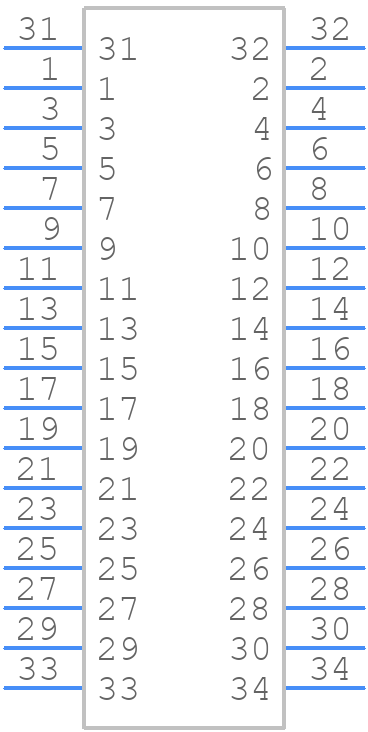

3-2260336-0 Details

• Manufacturer Part Number:

  3-2260336-0

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Body Breadth:

  0.064 inch

• Body Depth:

  0.023 inch

• Body Length:

  0.291 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  70 mΩ

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.5012 N

• Insulation Resistance:

  10000000 Ω

• Insulator Material:

  POLYETHYLENE

• Mating Contact Pitch:

  0.016 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.778 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.4064 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  30

• Withdrawl Force-Min:

  .15012 N
