3-2331102-1 - TE Connectivity

Description: Body Features: Connector & Keying Code C | Primary Product Color Blue | Configuration Features: Number of Positions 46 | PCB Mount Orientation Vertical | Number of Rows 3 | Contact Features: Contact Current Rating (Max) 23 AMP | Mating Tab Thickness .64 MM | Contact Type Tab | Contact Size 1.5mm | Mating Tab Width 1.5 MM | Contact Mating Area Plating Material Silver | Housing Features: Centerline (Pitch) 4 MM | Mechanical Attachment: Connector Mounting Type Board Mount | Mating Alignment With | Operation/Ap

Download 3-2331102-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

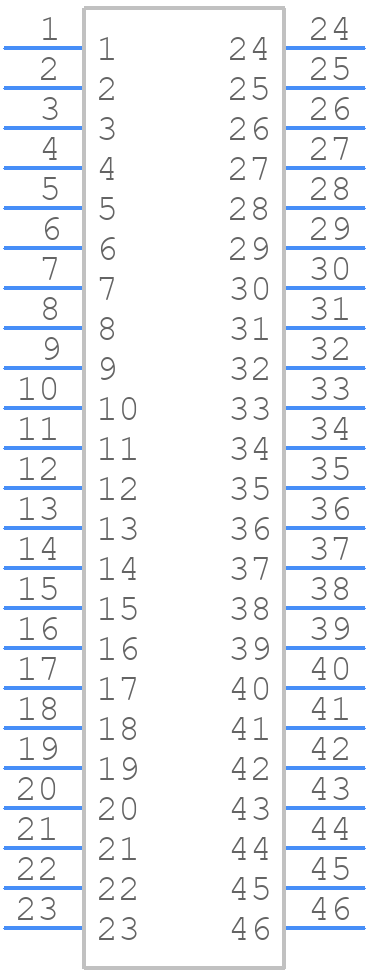

3-2331102-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

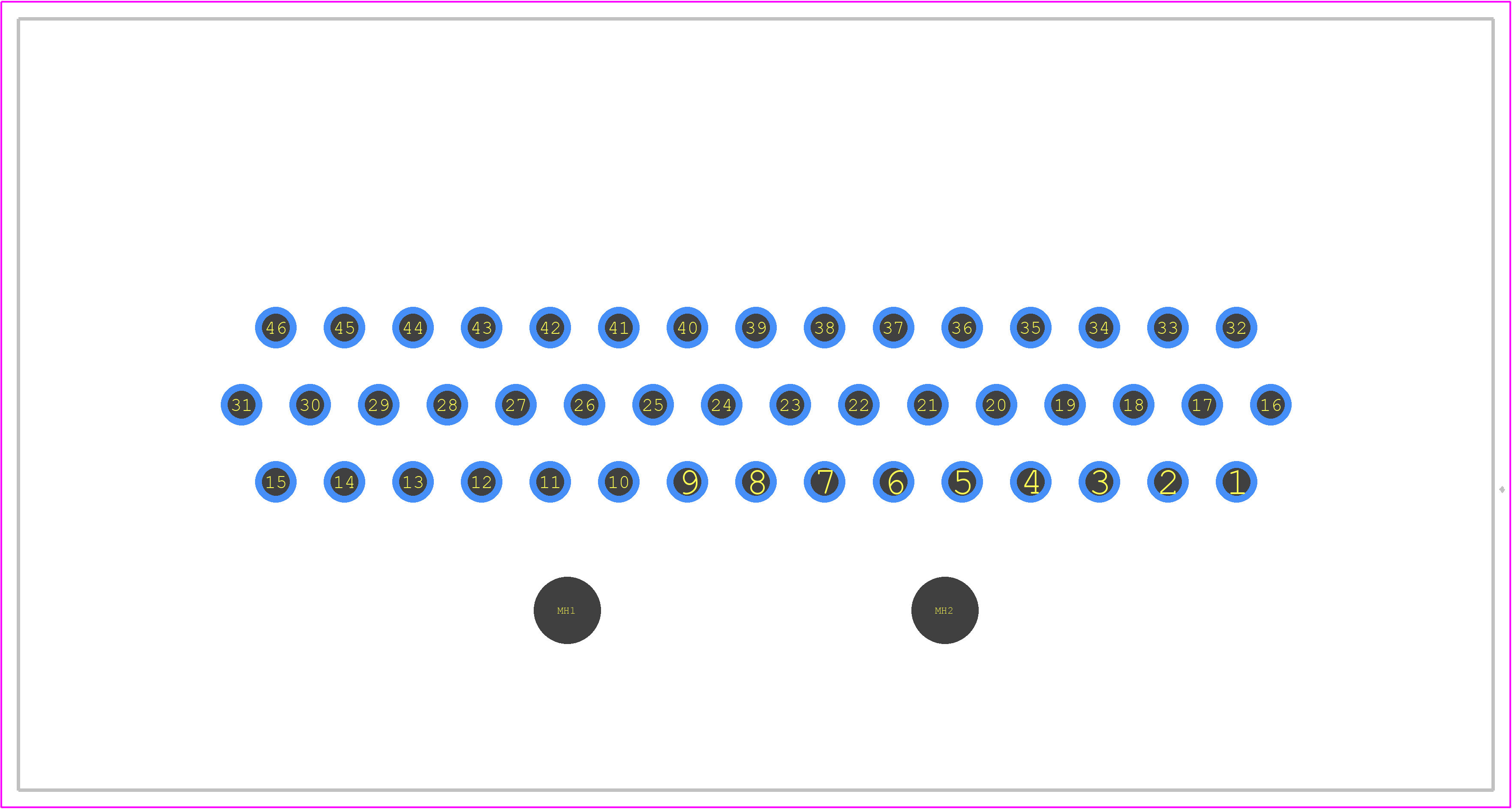

3-2331102-1 - TE Connectivity PCB footprint - Other - Other - 3-2331102-1-2
click to zoom
3D Models
3-2331102-1 - TE Connectivity - 3D model - Other - 3-2331102-1-2
click to zoom

3-2331102-1 Details

  • Manufacturer Part Number:

    3-2331102-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    23A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    23 A

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

3-2331102-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 3-2331102-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 3-2331102-1 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 3-2331102-1 connector is designed to meet IP20 ingress protection standards, which means it provides some protection against solid objects and limited protection against water. However, it's not suitable for immersion in water or exposure to harsh chemicals. For such applications, consider using connectors with higher IP ratings or specialized environmental sealing.
