3-282836-0 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Stacked Levels Without | Stacking Configuration Side Stackable | Wire Entry Location Side | Number of Rows 1 | Number of Positions 8 | Wire Entry Angle 90° | Contact Features: Contact Base Material Brass | Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 13.5 AMP | Dimensions: Wire Size 30 – 16 AWG | Wire Size .05 – 1.3 MMSQ | Electrical Characteristics: Operating Voltage 300 VAC |

Download 3-282836-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-282836-0 - TE Connectivity - PCB symbol
click to zoom

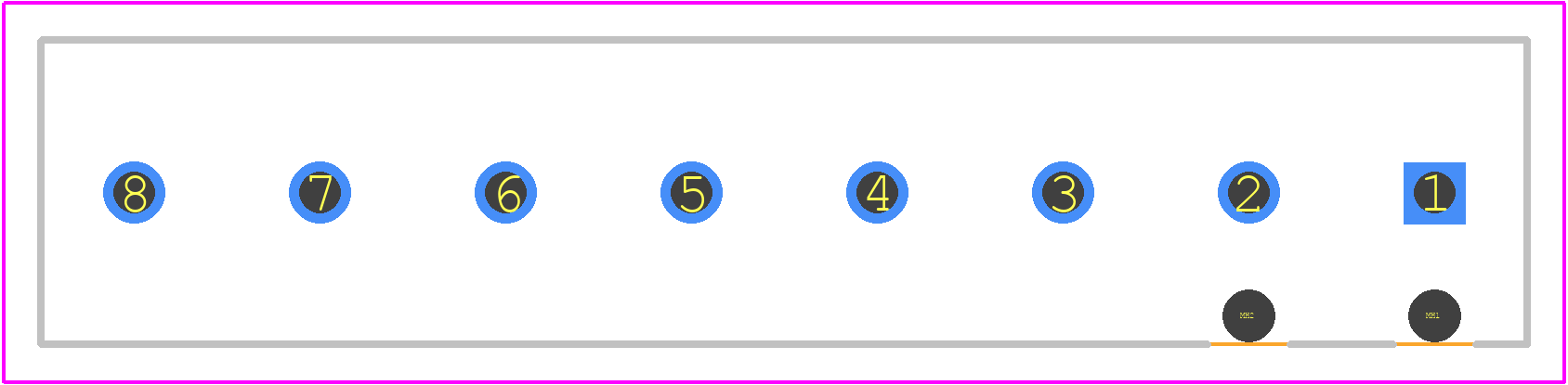

PCB Footprints
3-282836-0 - TE Connectivity PCB footprint - Other - Other - 3-282836-0-1
click to zoom
3D Models
3-282836-0 - TE Connectivity - 3D model - Other - 3-282836-0-1
click to zoom

3-282836-0 Details

  • Manufacturer Part Number:

    3-282836-0

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    9 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    13.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.3 mm2

  • Wire Gauge:

    16 AWG

3-282836-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 3-282836-0 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 3-282836-0 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 3-282836-0 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use in environments with exposure to specific chemicals or extreme conditions.
