3-350942-0 - TE Connectivity

Description: Configuration Features: Number of Power Positions 2 | Number of Rows 1 | Number of Positions 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Underplating Material Thickness 50 MICIN | Contact Mating Area Plating Material Thickness .76 MICM | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Gold | Contact Underplating Material Thickness 1.27 MICM | Contact Type Pin | Contact Current R

Download 3-350942-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints

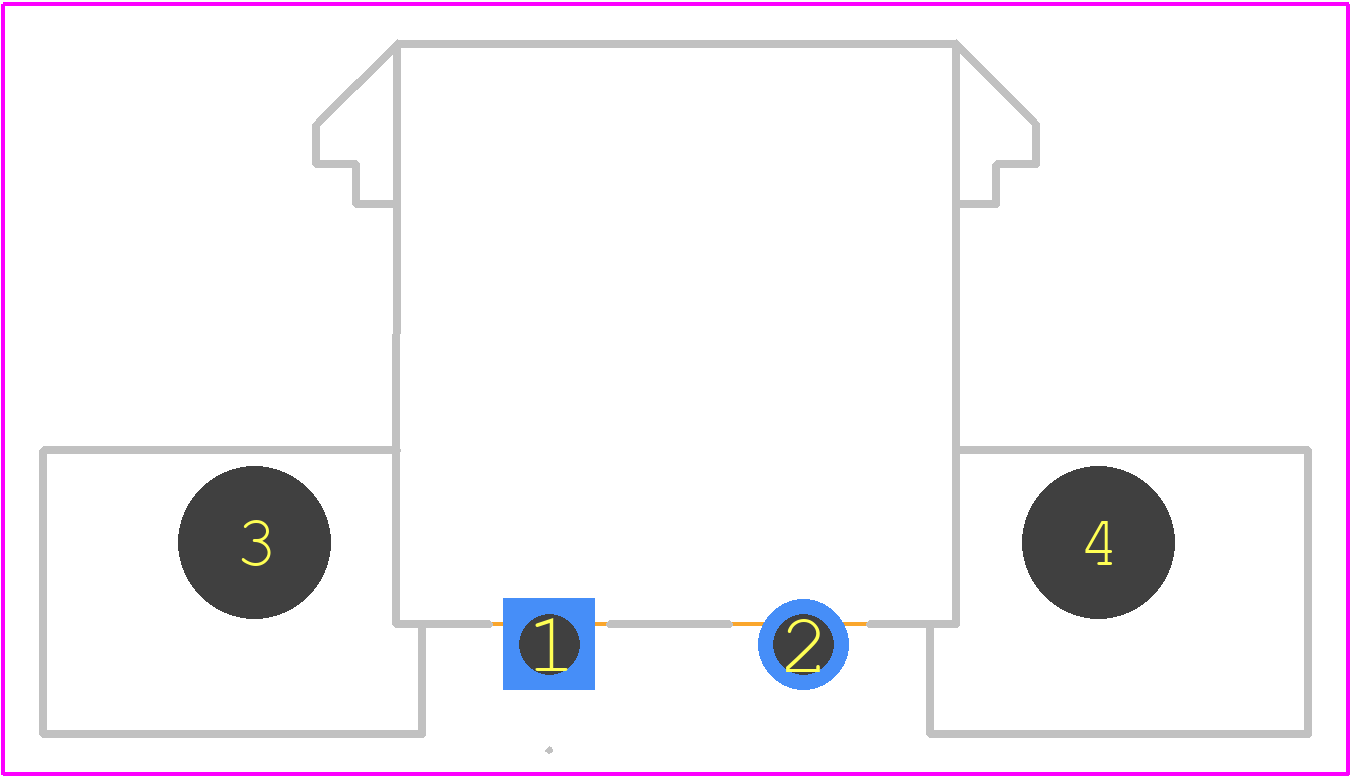

PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
3D Models
3-350942-0 - TE Connectivity  - 3D model
click to zoom
Note! To download footprints and symbols, use the build and request forms below

Build

Launch Build Wizard
Build Wizard not available for this package category!

Request (48 hours)

3-350942-0 Details

  • Manufacturer Part Number:

    3-350942-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    13 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.67

  • Additional Feature:

    RATED CURRENT (POWER): 19A

  • Body Breadth:

    0.36 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    1.245 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    770017-1

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Reference Standard:

    CSA, UL, V

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0
