3-5352152-0 - TE Connectivity

Description: Hard Metric Connectors Z-PACK/B22 RAF 110P

Download 3-5352152-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-5352152-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

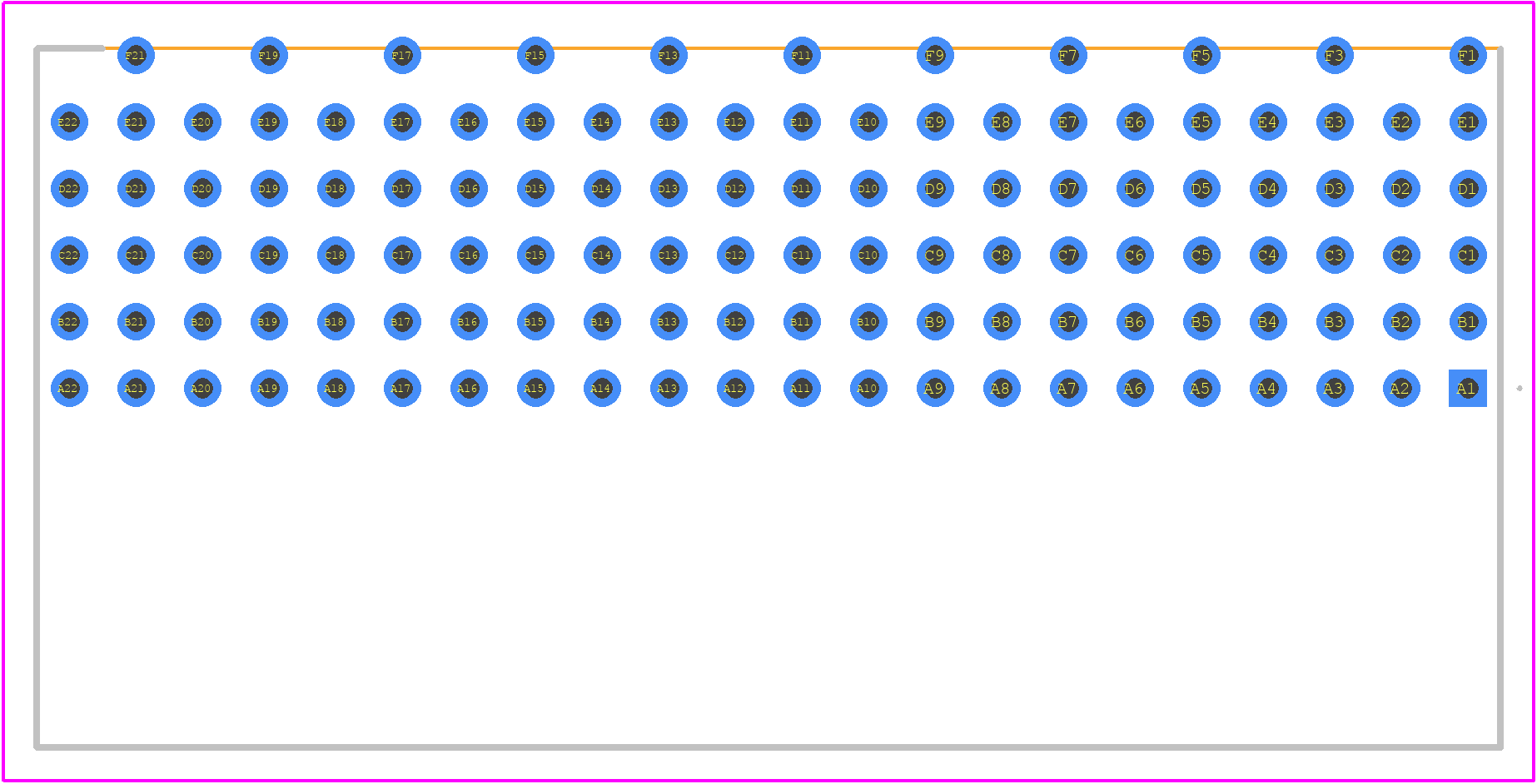

3-5352152-0 - TE Connectivity PCB footprint - Other - Other - 3-5352152-0-1
click to zoom
3D Models
3-5352152-0 - TE Connectivity - 3D model - Other - 3-5352152-0-1
click to zoom

3-5352152-0 Details

  • Manufacturer Part Number:

    3-5352152-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    0.449 inch

  • Body Depth:

    0.827 inch

  • Body Length:

    1.73 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    .7506 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    5

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.0066 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.0066 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    110

  • Withdrawl Force-Min:

    .15012 N

3-5352152-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 3-5352152-0 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 3-5352152-0 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • The 3-5352152-0 connector is designed to meet IP67 standards, making it suitable for use in harsh environments with high humidity and exposure to chemicals. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for your specific application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3-5352152-0 Overview

Use the download button to access the 3-5352152-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-535, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
