The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
Yes, the 3-5435640-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
The maximum operating temperature for the 3-5435640-6 connector is 125°C (257°F).
Yes, the 3-5435640-6 connector meets the UL94-V0 flammability rating, making it suitable for use in applications that require this rating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
3-5435640-6 Overview

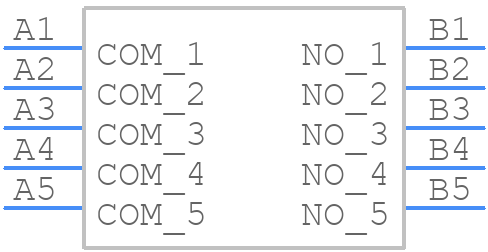

Use the download button to access the 3-5435640-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-543,
or try a keyword search, such as DIP Switches
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
