Part Image

3-641126-8 - TE Connectivity

Description: Headers & Wire Housings 8P VERT HDR ASSY

Download 3-641126-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-641126-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

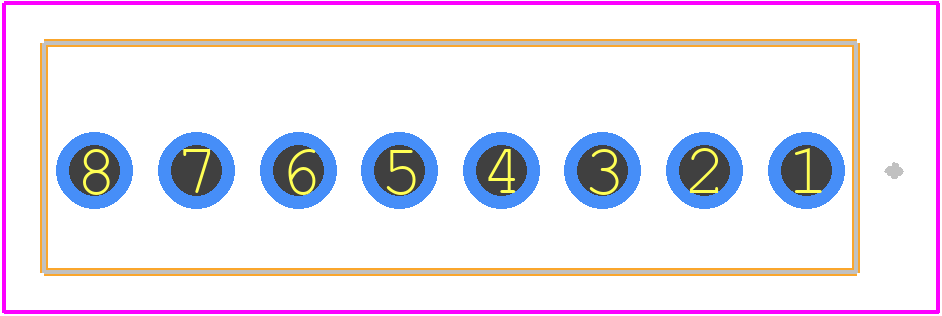

3-641126-8 - TE Connectivity PCB footprint - Other - Other - 3-641126-8-3
click to zoom
3D Models
3-641126-8 - TE Connectivity - 3D model - Other - 3-641126-8-3
click to zoom

3-641126-8 Details

  • Manufacturer Part Number:

    3-641126-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

3-641126-8 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 3-641126-8 connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 3-641126-8 connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial equipment.
  • Yes, the 3-641126-8 connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • Yes, the 3-641126-8 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories.
  • The maximum operating frequency of the 3-641126-8 connector is 3 GHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3-641126-8 Overview

Use the download button to access the 3-641126-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-641, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
