3-6437285-0 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Rows 4 | Number of Signal Positions 34 | Number of Positions 34 | Contact Features: Contact Size 1mm | Contact Type Pin | Mating Pin Diameter .039 INCH | Contact Mating Area Plating Material Gold | Mating Pin Diameter 1 MM | Dimensions: Profile Height from PCB .843 INCH | Connector Length 1.791 INCH | Profile Height from PCB 21.4 MM | Connector Width .906 INCH | Connector Length 45.5 MM | Connec

Download 3-6437285-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

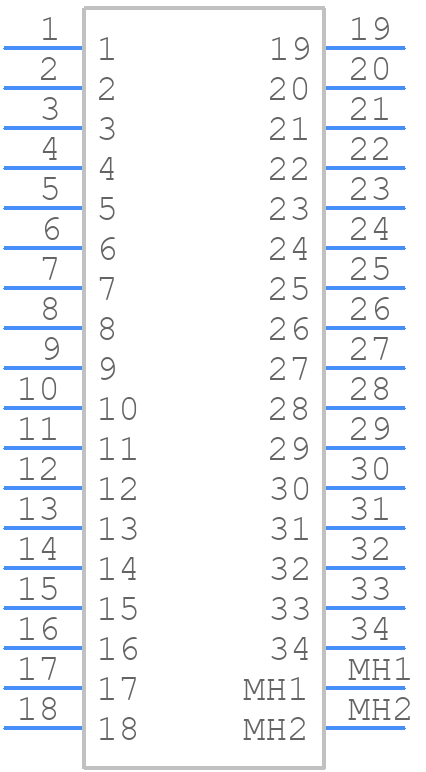

3-6437285-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

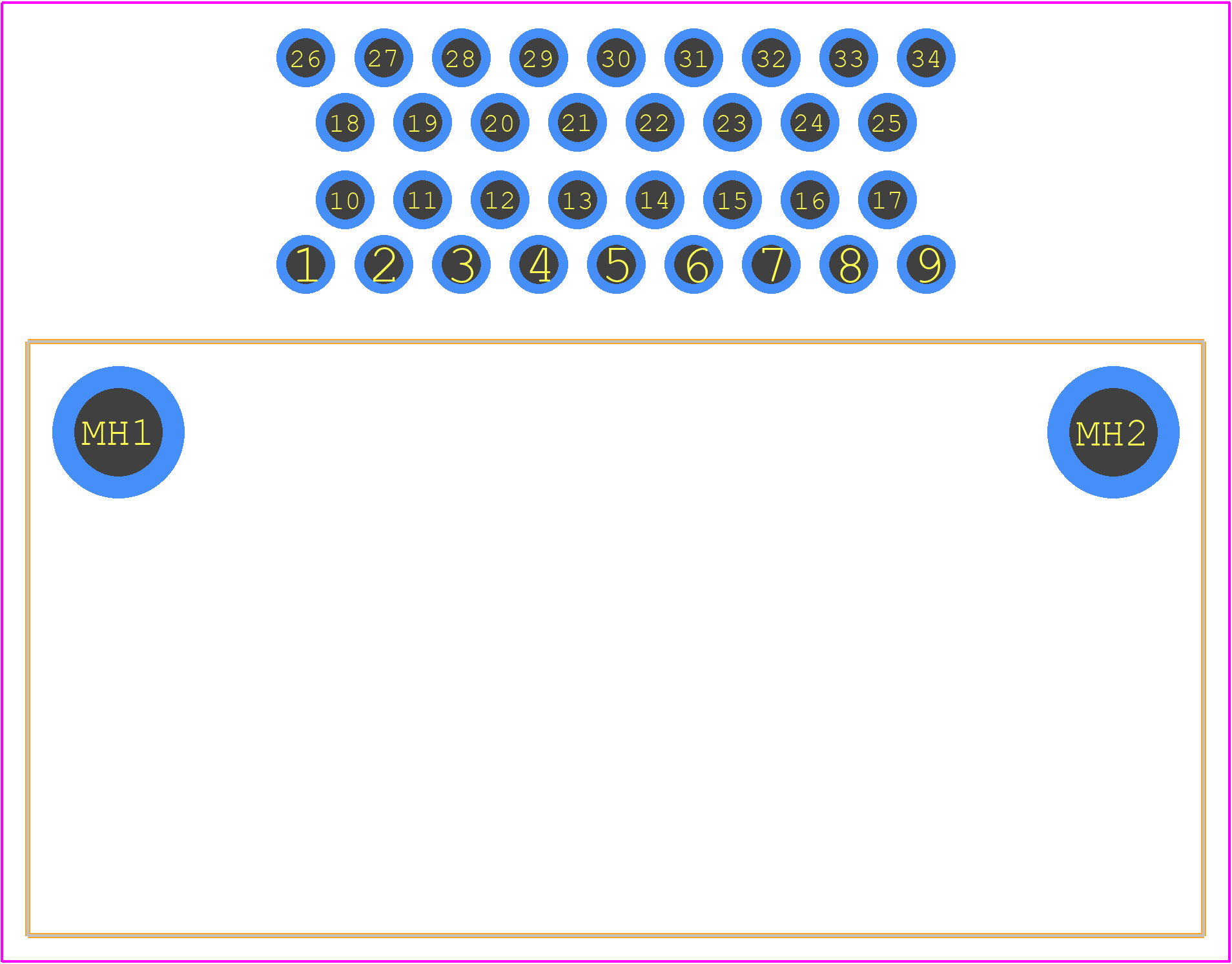

3-6437285-0 - TE Connectivity PCB footprint - Other - Other - 3-6437285-0-3
click to zoom
3D Models
3-6437285-0 - TE Connectivity - 3D model - Other - 3-6437285-0-3
click to zoom

3-6437285-0 Details

  • Manufacturer Part Number:

    3-6437285-0

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

3-6437285-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 3-6437285-0 connector is designed to withstand high-vibration environments and meets the IEC 61373 standard for vibration resistance.
  • Yes, the 3-6437285-0 connector is designed for outdoor use and meets the IP67 rating for ingress protection against dust and water.
  • The maximum operating temperature for the 3-6437285-0 connector is 125°C (257°F).
  • No, the 3-6437285-0 connector is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.
