3-6450332-2 - TE Connectivity

Description: PCB Mount Header, Right Angle, Board-to-Board, 16 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)

Download 3-6450332-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

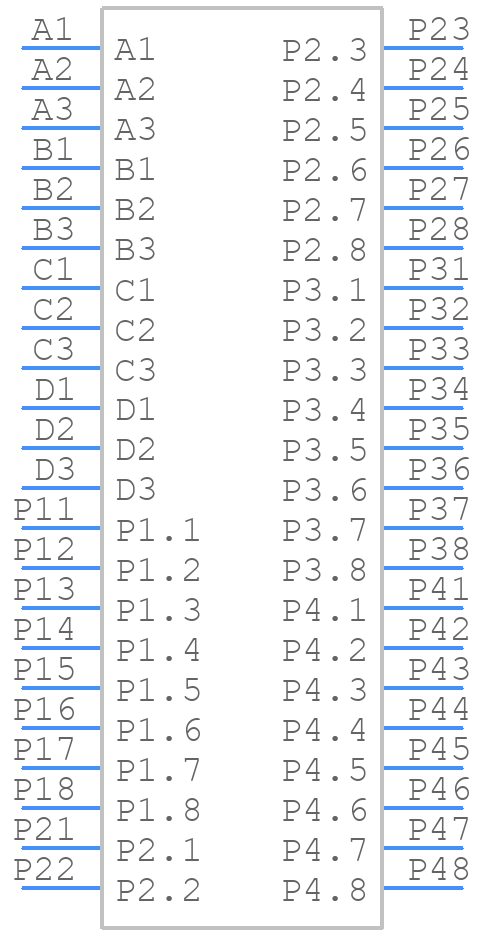

Symbol
3-6450332-2 - TE Connectivity - PCB symbol
click to zoom

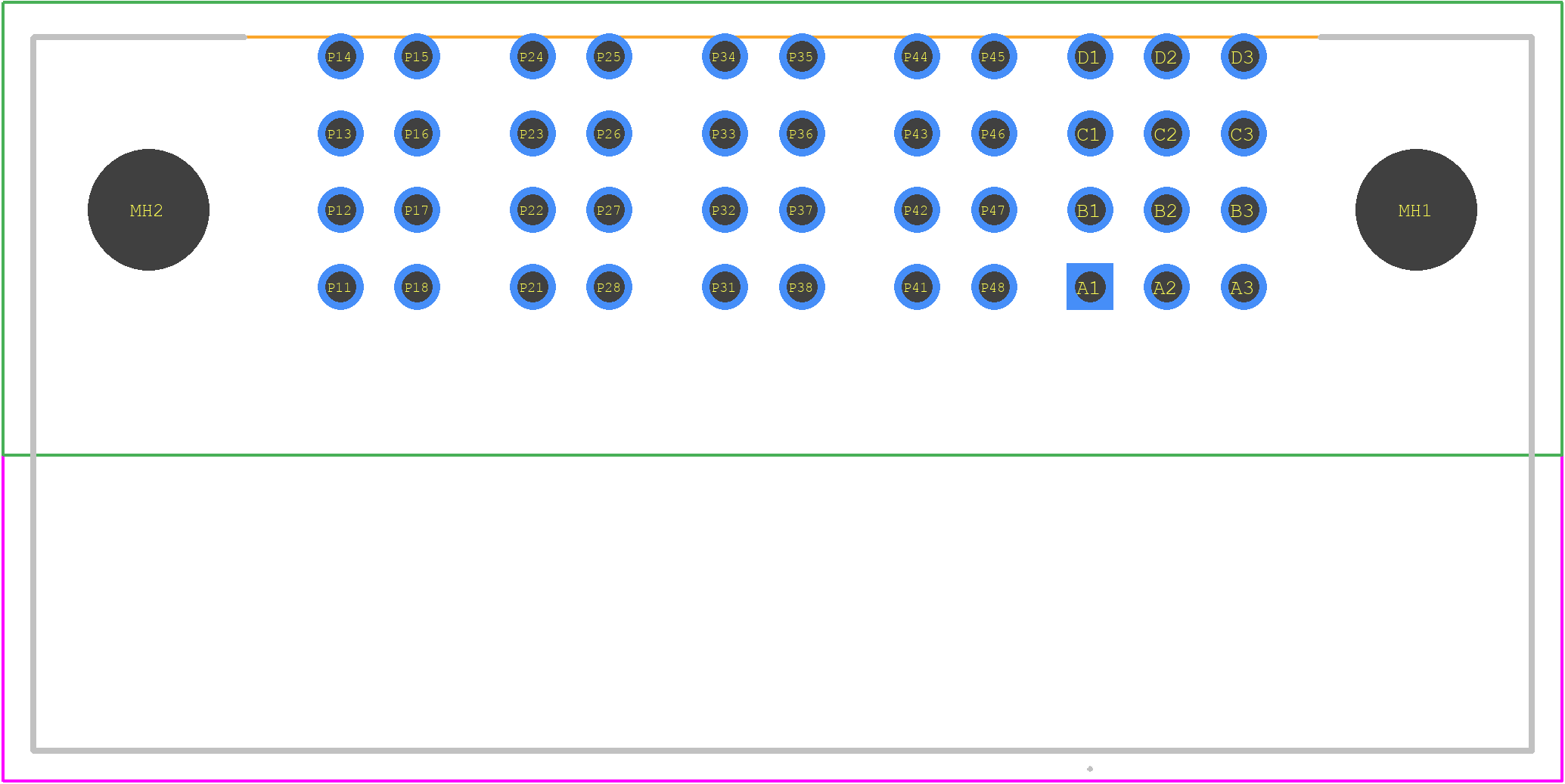

PCB Footprints
3-6450332-2 - TE Connectivity PCB footprint - Other - Other - 3-6450332-2-1
click to zoom
3D Models
3-6450332-2 - TE Connectivity - 3D model - Other - 3-6450332-2-1
click to zoom

3-6450332-2 Details

  • Manufacturer Part Number:

    3-6450332-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S12P4

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    42A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    42 A

  • Rated Voltage:

    200 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

3-6450332-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 3-6450332-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 3-6450332-2 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor environments to maintain its performance and reliability.
  • The operating temperature range of the 3-6450332-2 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 24-18 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure that the connector is compatible with the desired wire size and to determine any necessary modifications or adjustments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3-6450332-2 Overview

Use the download button to access the 3-6450332-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-645, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
