- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 30.358
- Part Number 30.358
- Manufacturer Altech
- Pin Count 8
- Part Category Connector
- Package Category Header, Vertical

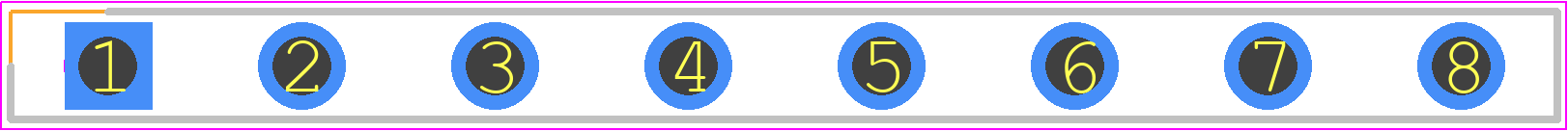

- Footprint Name Header, Vertical - 30.358
- Released Date May 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
30.358 Details
-
Manufacturer Part Number:
30.358
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Altech Corporation
-
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK
30.358 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
Yes, the 30.358 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure reliable operation.
-
The 30.358 is compatible with standard DIN rails, but it's recommended to verify the rail's dimensions and material to ensure a secure fit.
-
The maximum wire size that can be used with the 30.358 is 2.5 mm² (AWG 14) for the screw terminals.
-
The 30.358 is not designed for use in hazardous locations, such as explosive atmospheres. It's recommended to use a device specifically certified for hazardous locations if necessary.
Trust Checks
Community Provided
System Verified
Community Approved
30.358 Overview
Use the download button to access the 30.358 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 30.35,
or try a keyword search, such as Terminals and Terminal Blocks
