3004334-F - TE Connectivity

Description: Quadrant Pin Photodiode, 50 mm² [.077 in²] Active Area, 7.98 mm [.31 in] Active Area Diameter, 400 – 1100 nm Wavelength, Transistor Outline (TO)

Download 3004334-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

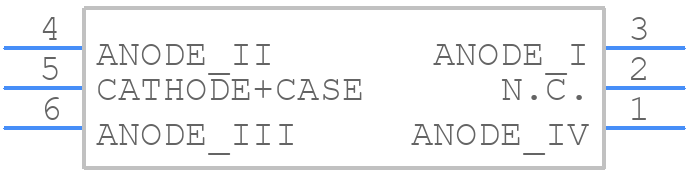

3004334-F - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
3004334-F - TE Connectivity PCB footprint - Other - Other - TO8S_1
click to zoom
3D Models
3004334-F - TE Connectivity - 3D model - Other - TO8S_1
click to zoom

3004334-F Details

  • Manufacturer Part Number:

    3004334-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    39 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Infrared Range:

    YES

  • Mounting Feature:

    PANEL MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    PIN PHOTODIODE

  • Peak Wavelength:

    400 nm

  • Surface Mount:

    NO
