301-1A-S-R1-12VDC footprint, schematic symbol and 3D model by Song Chuan

Symbol

click to zoom

PCB Footprints

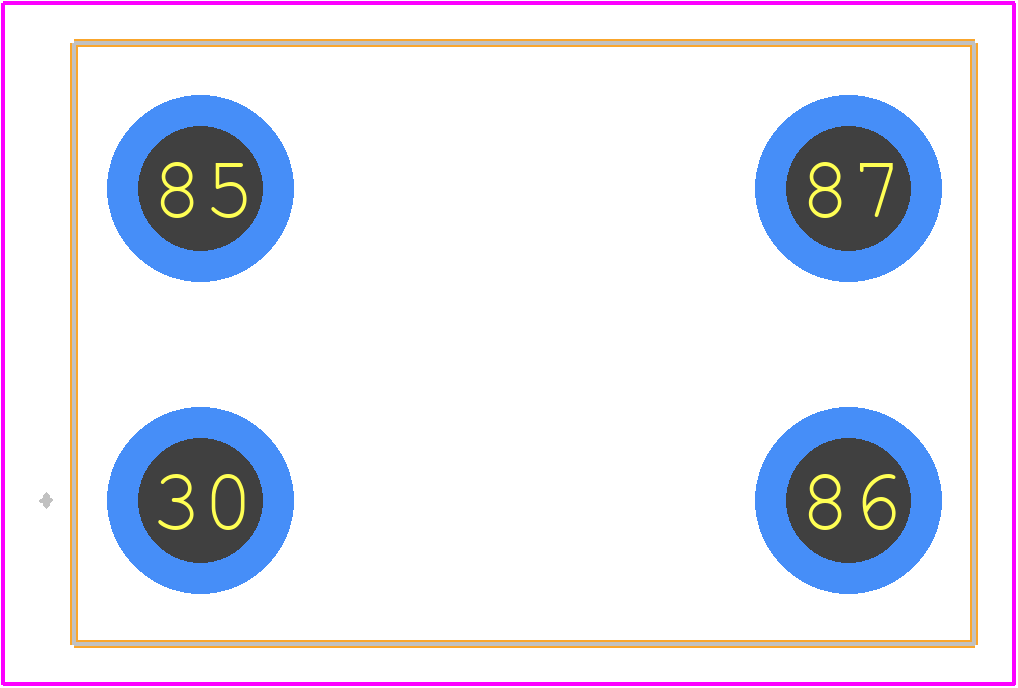

301-1A-S-R1-12VDC - Song Chuan PCB footprint - Other - Other - 301-1A-S-R1-12VDC-2

click to zoom

3D Models

301-1A-S-R1-12VDC - Song Chuan - 3D model - Other - 301-1A-S-R1-12VDC-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 301-1A-S-R1-12VDC
Part Number 301-1A-S-R1-12VDC
Manufacturer Song Chuan
Pin Count 4
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 301-1A-S-R1-12VDC-2
Released Date Oct 14, 2020
Last Modified Date Sep 5, 2025 8:03 AM UTC
Pinout / Pin List Click Here (Member Only)

301-1A-S-R1-12VDC Details

Manufacturer Part Number:
301-1A-S-R1-12VDC
Manufacturer:
Song Chuan Precision Company

Trust Checks

Expert Contribution

System Verified

Community Approved

301-1A-S-R1-12VDC Overview

Use the download button to access the 301-1A-S-R1-12VDC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 301-1, or try a keyword search, such as Power/Signal Relays
