302-40064-01 - ept

Description: FEMALE, SOLDER, TY B, CL2, 64WAY, 3,4MM; Product Range:Type B Series; No. of Contacts:64Contacts; Gender:Receptacle; Pitch Spacing:2.54mm; No. of Rows:2 Row; Rows Loaded:a + b; Contact Plating:-; Contact Material:-; No. of Mating RoHS Compliant: Yes

Download 302-40064-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
302-40064-01 - ept - PCB symbol
click to zoom
PCB Footprints

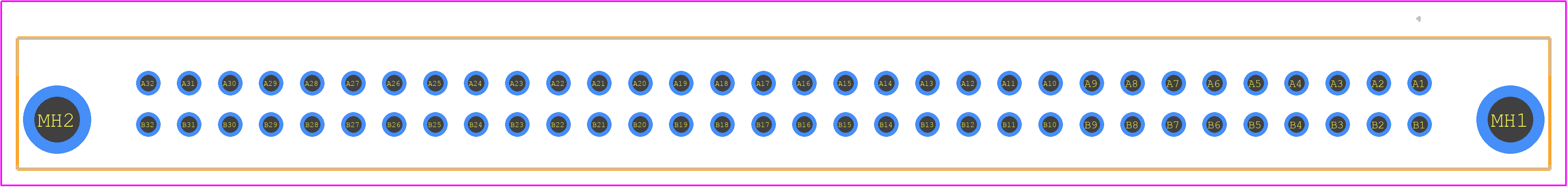

302-40064-01 - ept PCB footprint - Other - Other - 302-40064-01-3
click to zoom
3D Models
302-40064-01 - ept - 3D model - Other - 302-40064-01-3
click to zoom

302-40064-01 Details

  • Manufacturer Part Number:

    302-40064-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612, IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64
