3021-D-E-1000 - LEDdynamics

Description: 1A 32V (Max) Constant Current LED Driver Buck Topology 1 Output

Download 3021-D-E-1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3021-D-E-1000 - LEDdynamics - PCB symbol
click to zoom
PCB Footprints

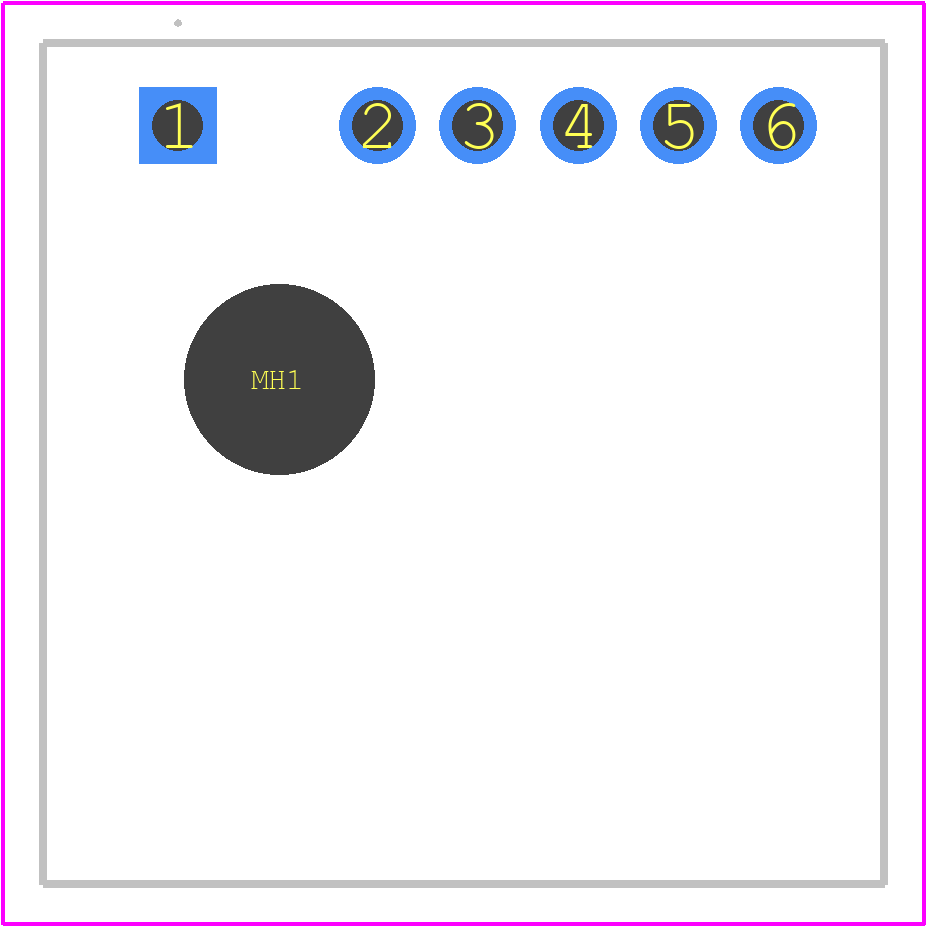

3021-D-E-1000 - LEDdynamics PCB footprint - Other - Other - 3021-D-E-1000-3
click to zoom
3D Models
3021-D-E-1000 - LEDdynamics - 3D model - Other - 3021-D-E-1000-3
click to zoom

3021-D-E-1000 Details

  • Manufacturer Part Number:

    3021-D-E-1000

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SIP-7/6

  • ECCN Code:

    EAR99

  • Manufacturer:

    LEDDynamics

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    95%

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T6

  • Length:

    21 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP6/7,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    SHORT CIRCUIT

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Trim/Adjustable Output:

    YES

3021-D-E-1000 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature range for the 3021-D-E-1000 is -40°C to 85°C, but it's recommended to operate it between 0°C to 70°C for optimal performance.
  • No, the 3021-D-E-1000 is not designed to work with dimmer switches. It's recommended to use a dedicated LED dimmer or a 0-10V dimming interface for smooth dimming performance.
  • The minimum load requirement for the 3021-D-E-1000 is 10mA. Operating the driver below this minimum load may affect its performance and lifespan.
  • Yes, the 3021-D-E-1000 is compatible with LED strips that have built-in resistors. However, it's essential to ensure the total current draw from the LED strip does not exceed the driver's maximum output current rating.
  • No, the 3021-D-E-1000 is not certified for use in hazardous locations. It's designed for general lighting applications only.
