3021-D-E-350 - LEDdynamics

Description: 350mA 32V (Max) Constant Current LED Driver Buck Topology 1 Output

Download 3021-D-E-350 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3021-D-E-350 - LEDdynamics - PCB symbol
click to zoom
PCB Footprints

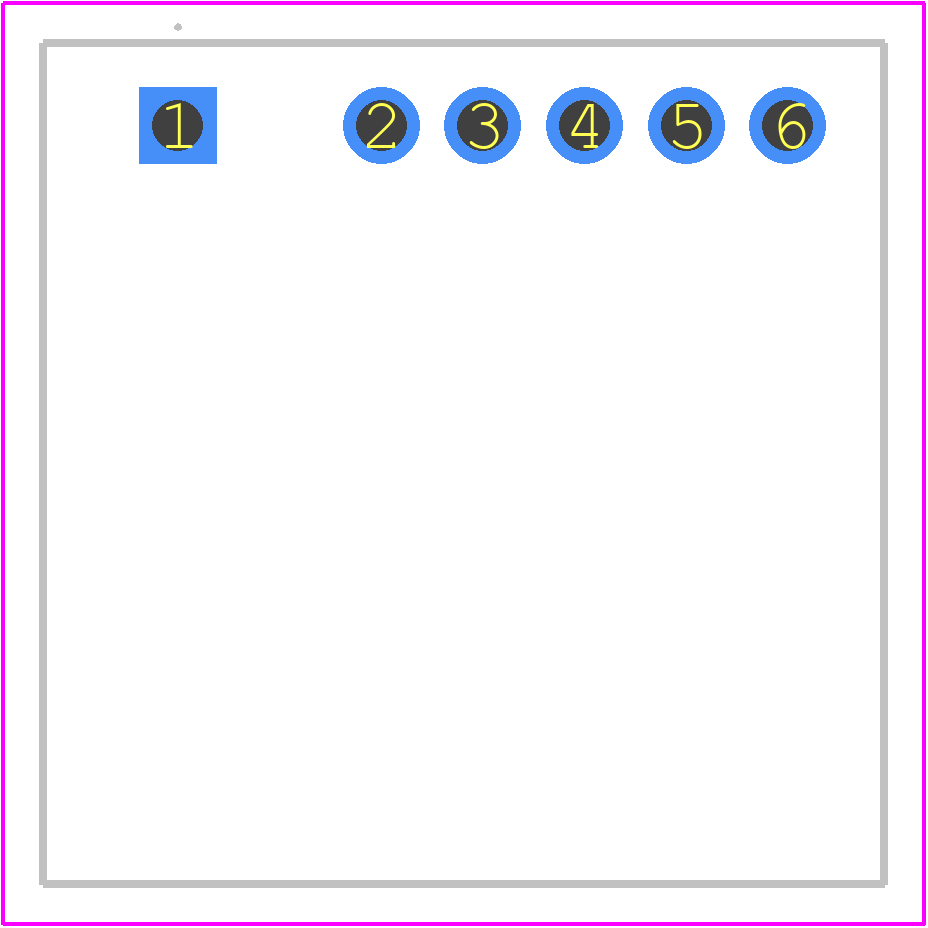

3021-D-E-350 - LEDdynamics PCB footprint - Other - Other - 3021-D-E-350-3
click to zoom
3D Models
3021-D-E-350 - LEDdynamics - 3D model - Other - 3021-D-E-350-3
click to zoom

3021-D-E-350 Details

  • Manufacturer Part Number:

    3021-D-E-350

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SIP-7/6

  • ECCN Code:

    EAR99

  • Manufacturer:

    LEDDynamics

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    7 V

  • JESD-30 Code:

    R-PSIP-T6

  • Length:

    21 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    8.4 W

  • Trim/Adjustable Output:

    NO
