3021-D-E-700 - LEDdynamics

Description: Wide Range LED Power Module

Download 3021-D-E-700 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3021-D-E-700 - LEDdynamics - PCB symbol
click to zoom
PCB Footprints

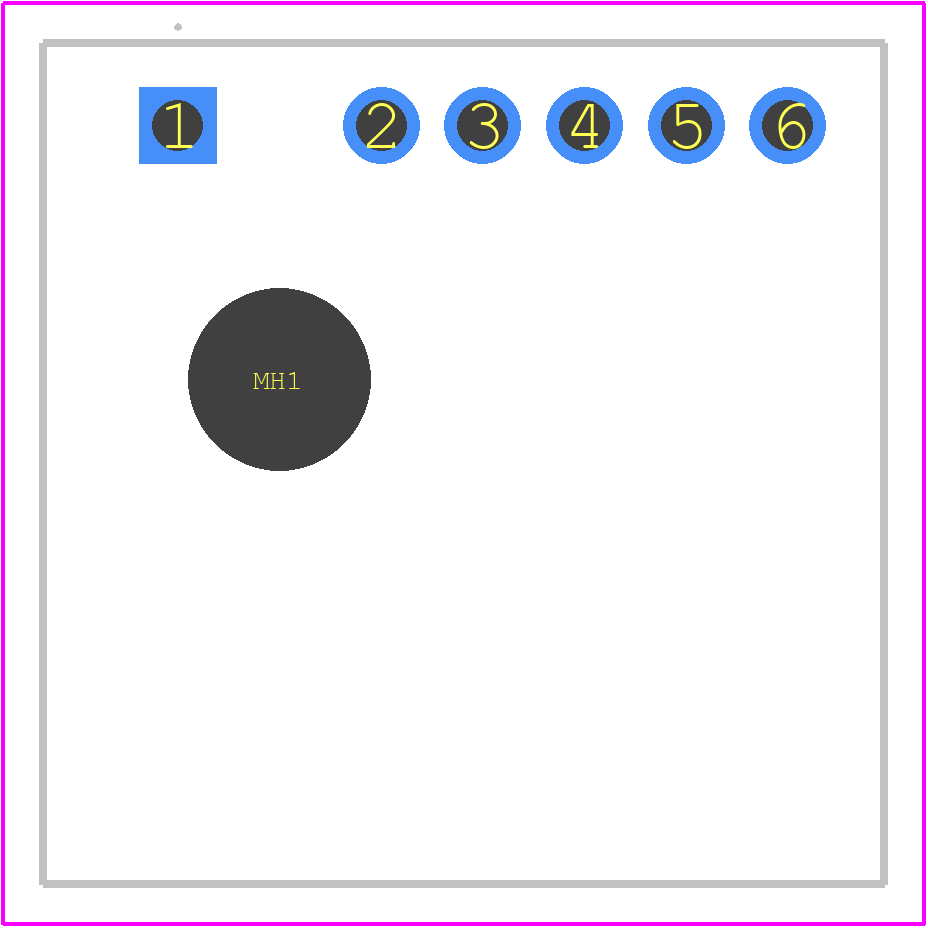

3021-D-E-700 - LEDdynamics PCB footprint - Other - Other - 3021-D-E-700-4
click to zoom
3D Models
3021-D-E-700 - LEDdynamics - 3D model - Other - 3021-D-E-700-4
click to zoom

3021-D-E-700 Details

  • Manufacturer Part Number:

    3021-D-E-700

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SIP-7/6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    LEDDynamics

  • Analog IC - Other Type:

    DC-DC LED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    95%

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    7 V

  • JESD-30 Code:

    R-PSIP-T6

  • Length:

    21 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.7 A

  • Output Voltage-Max:

    32 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    SQUARE

  • Package Style:

    IN-LINE

  • Protections:

    SHORT CIRCUIT

  • Seated Height-Max:

    12.192 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    22.4 W

  • Trim/Adjustable Output:

    NO

  • Width:

    21 mm

3021-D-E-700 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 3021-D-E-700 is -40°C to 85°C, with optimal performance between 25°C to 60°C.
  • Proper thermal management can be achieved by providing a heat sink with a thermal resistance of ≤ 10°C/W, and ensuring good airflow around the module. Additionally, the module should be mounted on a metal core PCB or a heat sink to dissipate heat efficiently.
  • The maximum drive current for the 3021-D-E-700 is 700mA, but it's recommended to operate at a maximum of 600mA to ensure optimal performance and longevity.
  • Yes, the 3021-D-E-700 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and UV radiation. Additionally, the module should be mounted in a way that prevents water ingress and provides adequate drainage.
  • LEDDynamics uses a proprietary binning and sorting process to ensure that the 3021-D-E-700 modules meet specific standards for color, brightness, and flux. The modules are sorted into different bins based on their characteristics, and each bin is identified by a specific code.
