The operating temperature range for the 303-1AH-C-R1-12VDC relay is typically between -40°C to 85°C, but it's recommended to check the datasheet or consult with the manufacturer for specific temperature ratings.
The 303-1AH-C-R1-12VDC relay is designed to withstand moderate vibrations, but it's not specifically rated for high-vibration environments. If your application involves extreme vibrations, you may need to consider a relay with specific vibration-resistant features or consult with the manufacturer for custom solutions.
The 303-1AH-C-R1-12VDC relay is not designed for use in humid or wet environments. It's recommended to use a relay with a higher IP rating (e.g., IP67 or higher) or apply additional protection measures, such as conformal coating or potting, to ensure reliable operation in humid or wet conditions.
The lifespan of the 303-1AH-C-R1-12VDC relay depends on various factors, including operating conditions, switching frequency, and load characteristics. Typically, a relay like this can last for millions of cycles, but it's recommended to consult the manufacturer's specifications or application notes for more detailed information.
The 303-1AH-C-R1-12VDC relay is designed to operate with a 12VDC coil voltage. While it may be possible to use it with a different coil voltage, it's not recommended without consulting the manufacturer or performing thorough testing to ensure reliable operation and avoid damage to the relay.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
303-1AH-C-R1-12VDC Overview

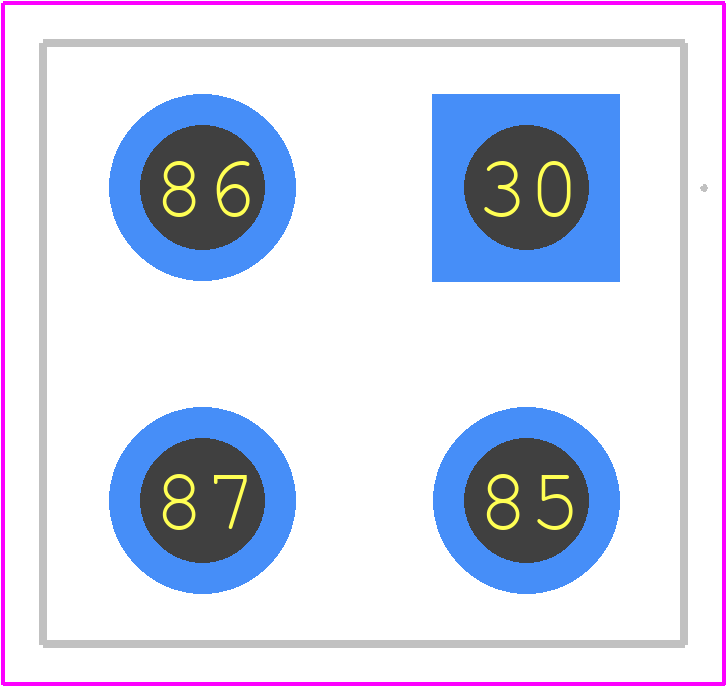

Use the download button to access the 303-1AH-C-R1-12VDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 303-1,
or try a keyword search, such as Power/Signal Relays
