The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the EDAC 306-022-520-102 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The operating temperature range for the EDAC 306-022-520-102 connector is -40°C to 105°C (-40°F to 221°F). It's essential to consider this temperature range when designing your application to ensure reliable performance.
The EDAC 306-022-520-102 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's still important to consider additional protection measures, such as conformal coating or potting, to ensure reliability in harsh environmental conditions.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use other wire sizes with the EDAC 306-022-520-102 connector. However, it's essential to consult with EDAC Inc or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's requirements.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
306-022-520-102 Overview

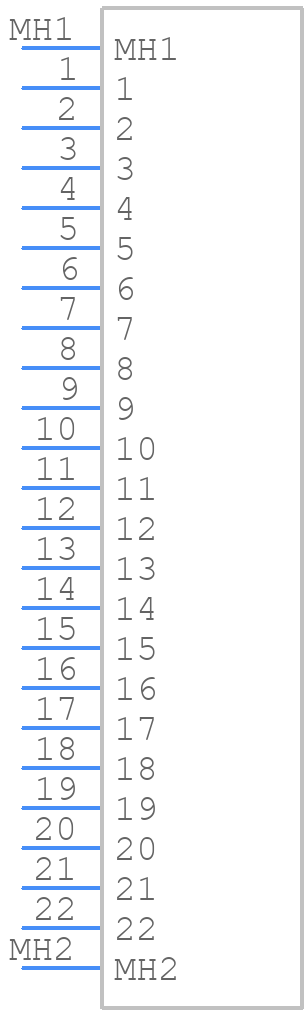

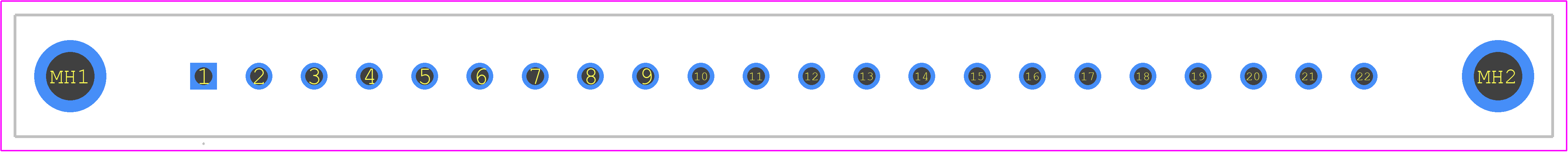

Use the download button to access the 306-022-520-102 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 306-0,
or try a keyword search, such as Headers and Edge Type Connectors
