307-012-520-201 - EDAC

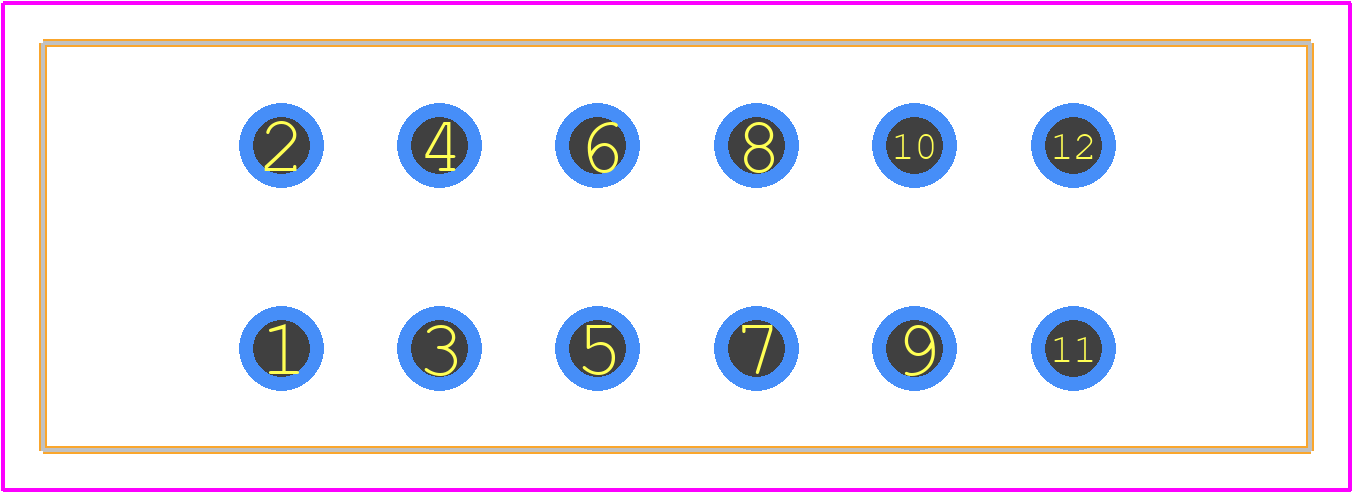

307-012-520-201 Details

• Manufacturer Part Number:

  307-012-520-201

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  EDAC Inc

• YTEOL:

  8

• Body Breadth:

  0.343 inch

• Body Depth:

  0.473 inch

• Body Length:

  1.246 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  2545VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  GREEN

• Insulator Material:

  POLYETHYLENE/POLYESTER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.156 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.08 mm

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Terminal Length:

  0.213 inch

• Terminal Pitch:

  3.96 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  12

• UL Flammability Code:

  94V-0
