- Part Number 30700-4060
- Manufacturer Molex
- Pin Count 7
- Part Category Connector
- Package Category Other

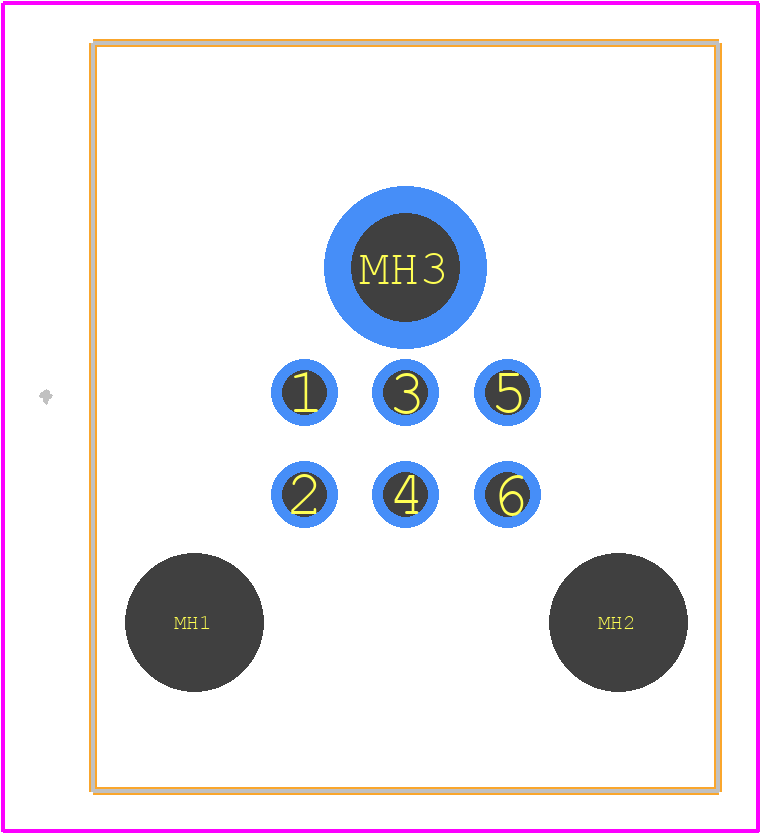

- Footprint Name Other - 30700-4060-4
- Released Date Feb 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
30700-4060 Details
-
Manufacturer Part Number:
30700-4060
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, Mexico, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Molex
-
YTEOL:
8
-
Additional Feature:
RATED CURRENT(POWER): 7A, POLARIZED
30700-4060 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 30700-4060 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 30700-4060 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
-
While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 28 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to ensure reliable connections.
-
The 30700-4060 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
30700-4060 Overview
Use the download button to access the 30700-4060 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 30700,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
