30700-4120 - Molex

Description: Automotive Connectors HDAC64 DR VERT HDR 1 DR 12 CKT GRAY POL 1

Download 30700-4120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
30700-4120 - Molex - PCB symbol
click to zoom

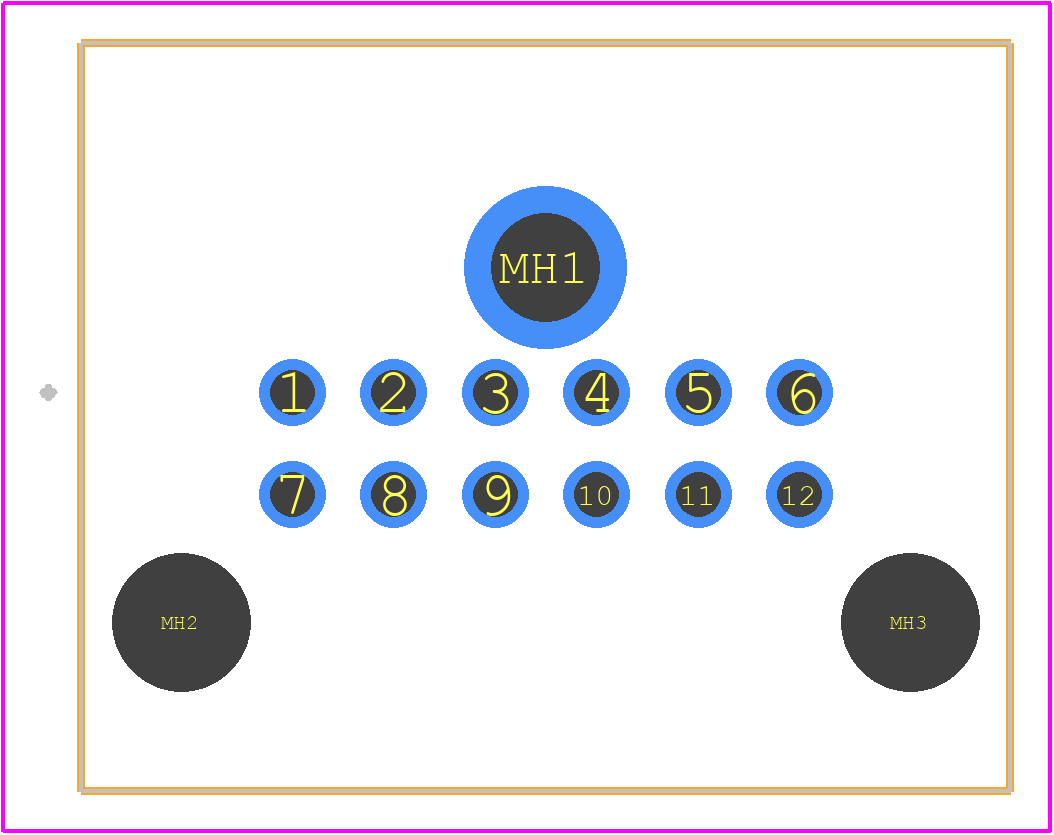

PCB Footprints
30700-4120 - Molex PCB footprint - Other - Other - 30700-4120-4
click to zoom
3D Models
30700-4120 - Molex - 3D model - Other - 30700-4120-4
click to zoom

30700-4120 Details

  • Manufacturer Part Number:

    30700-4120

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.59

  • Additional Feature:

    RATED CURRENT(POWER): 7A, POLARIZED

  • Body Breadth:

    0.735 inch

  • Body Depth:

    0.854 inch

  • Body Length:

    0.914 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

30700-4120 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 30700-4120 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 30700-4120 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 30700-4120 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's still important to follow proper installation and sealing procedures to ensure the connector remains watertight and reliable.
  • While the 30700-4120 connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance and safety standards.
