30700-5208 - Molex

Description: Automotive Connectors HDAC64 DR RA HDR 20 R 20 CKT BLACK POL 2

Download 30700-5208 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
30700-5208 - Molex - PCB symbol
click to zoom
PCB Footprints

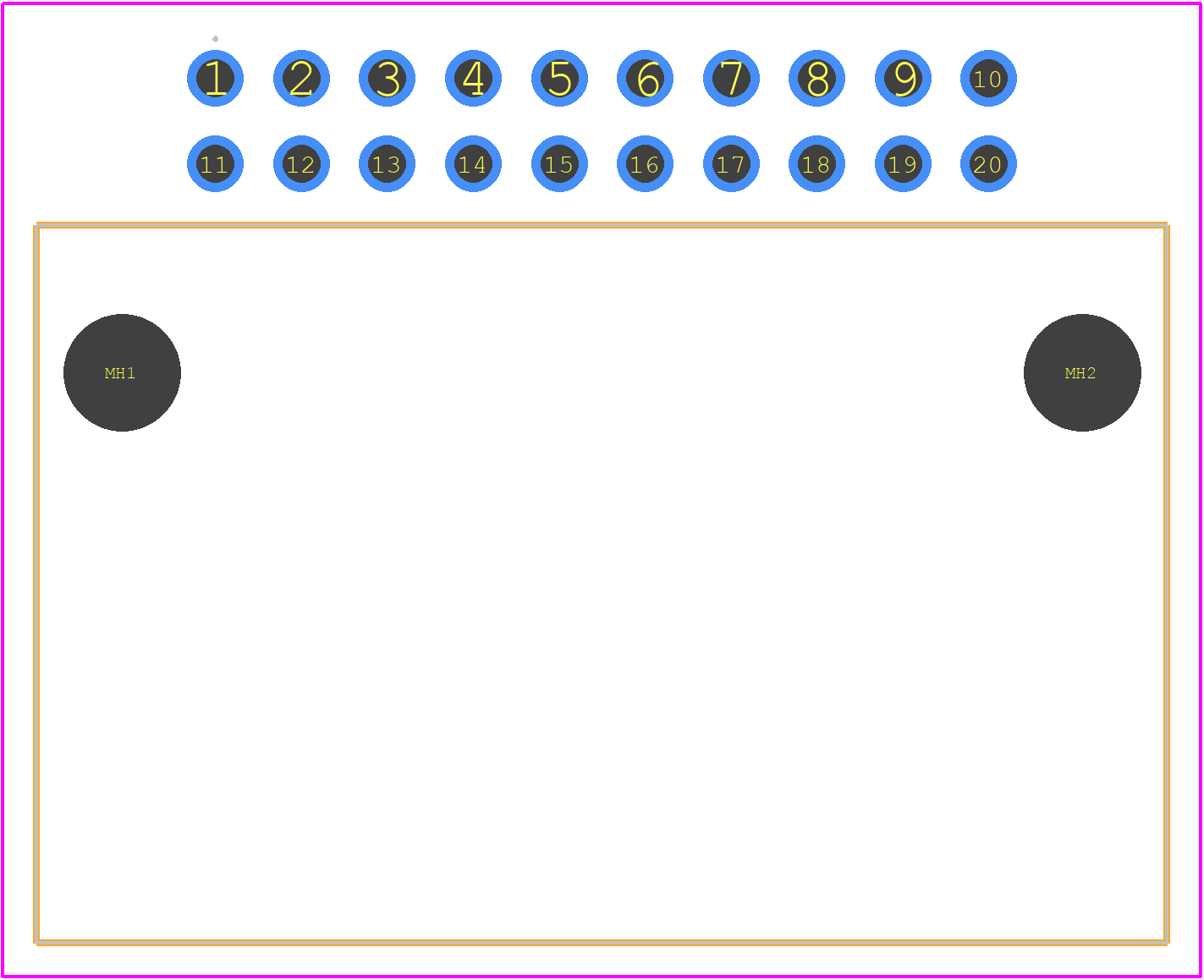

30700-5208 - Molex PCB footprint - Other - Other - 30700-5208-1
click to zoom
3D Models
30700-5208 - Molex - 3D model - Other - 30700-5208-1
click to zoom

30700-5208 Details

  • Manufacturer Part Number:

    30700-5208

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.734 inch

  • Body Depth:

    1.007 inch

  • Body Length:

    1.315 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    CRIMP

  • Total Number of Contacts:

    20

30700-5208 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 30700-5208 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the 30700-5208 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels, making it suitable for harsh environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
  • The 30700-5208 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 30700-5208 connector is designed to be compatible with automated assembly processes, such as pick-and-place machines, to facilitate efficient and reliable production.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

30700-5208 Overview

Use the download button to access the 30700-5208 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 30700, or try a keyword search, such as Combination Line Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
