- Part Number 30700-5240
- Manufacturer Molex
- Pin Count 27
- Part Category Connector
- Package Category Other
- Footprint Name Other - 30700-5240-4
- Released Date Apr 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
30700-5240 Details
-
Manufacturer Part Number:
30700-5240
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Mainland China, South Korea, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Molex
-
YTEOL:
8
30700-5240 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.2 in-lbs).
-
No, the 307005240 connector is rated for a maximum voltage of 250V AC/DC. For high-voltage applications, consider using a different connector with a higher voltage rating.
-
The 307005240 connector has a IP20 rating, which means it provides some protection against solid objects and fingers, but it is not designed for outdoor or harsh environment use. For such applications, consider using a connector with a higher IP rating or additional environmental protection.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's essential to ensure the wire size and insulation meet the connector's specifications and do not compromise the connection's reliability.
-
Yes, the datasheet recommends a minimum PCB thickness of 1.6 mm and a keep-out area around the connector to ensure proper clearance and prevent interference with other components.
Trust Checks
Expert Contribution
System Verified
Community Approved
30700-5240 Overview

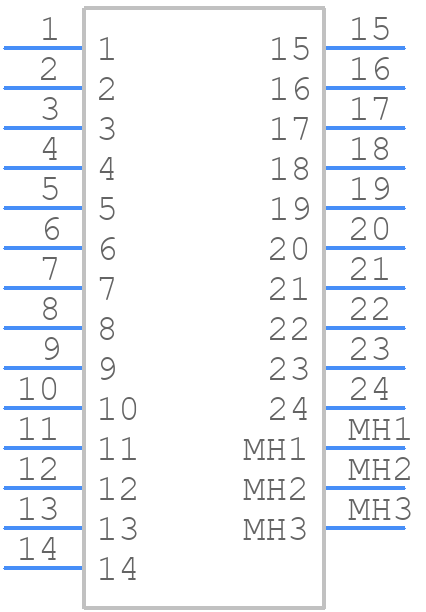

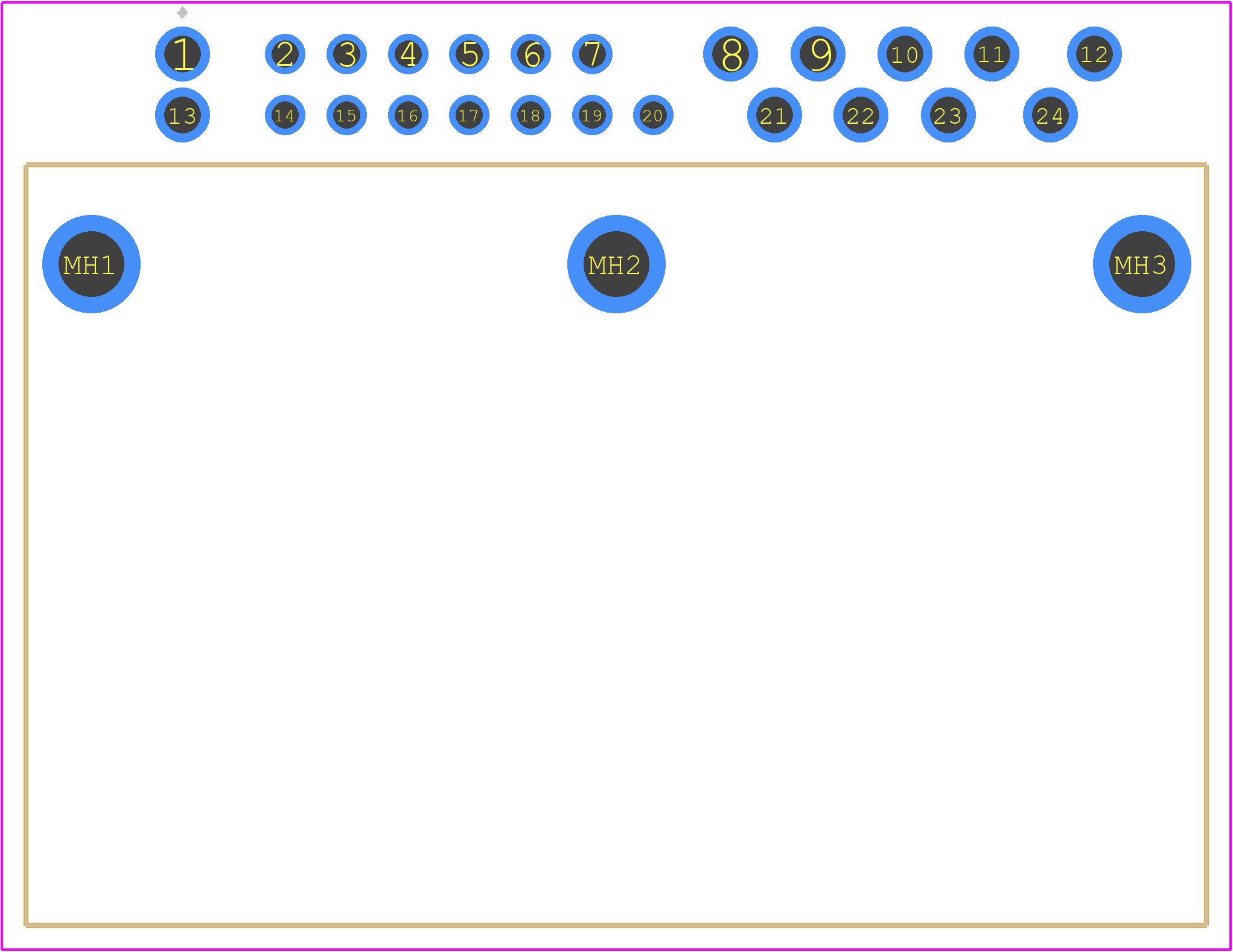

Use the download button to access the 30700-5240 schematic symbol, PCB footprint, and 3D model.
