Part Image

31092104 - Metz Connect

Description: TYPE 092 4 Pole horizontal screw PCB terminal block 5mm pitch

Download 31092104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
31092104 - Metz Connect - PCB symbol
click to zoom
PCB Footprints

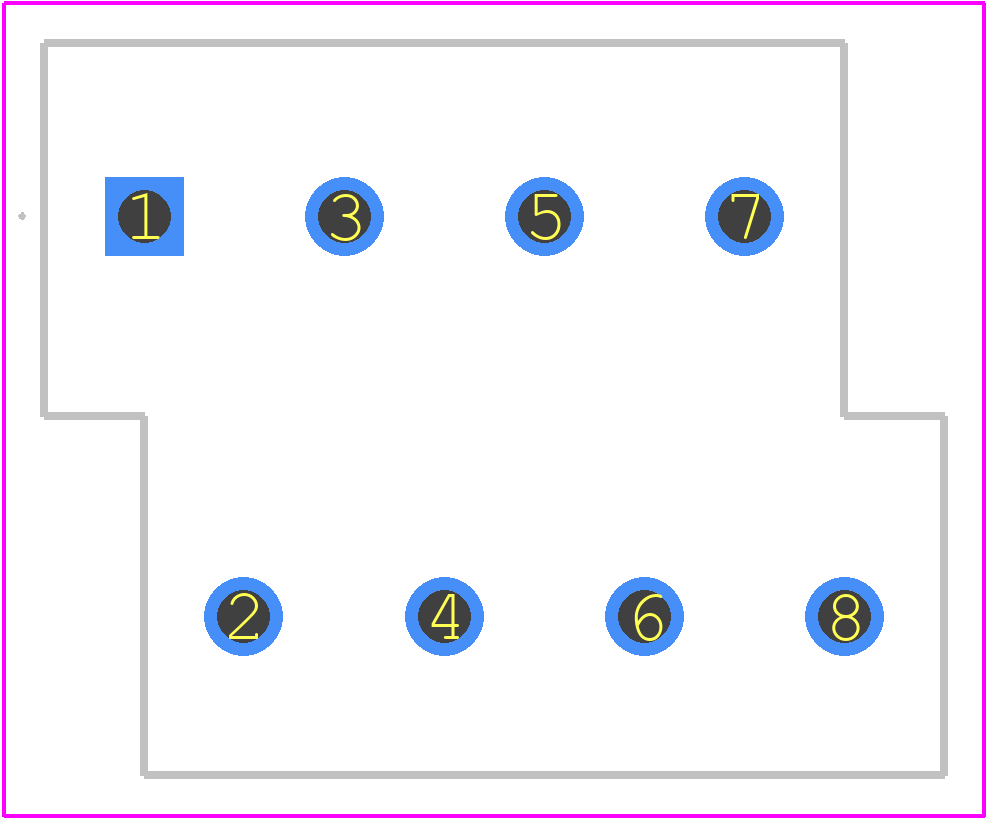

31092104 - Metz Connect PCB footprint - Other - Other - 31092104-4
click to zoom
3D Models
31092104 - Metz Connect - 3D model - Other - 31092104-4
click to zoom

31092104 Details

  • Manufacturer Part Number:

    31092104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    METZ CONNECT USA

  • YTEOL:

    0

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

31092104 Overview

Use the download button to access the 31092104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31092, or try a keyword search, such as Terminals and Terminal Blocks
