31320106 - Metz Connect

Description: METZ CONNECT - 31320106 - TERMINAL BLOCK, HEADER, 6POS, TH

Download 31320106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
31320106 - Metz Connect - PCB symbol
click to zoom
PCB Footprints

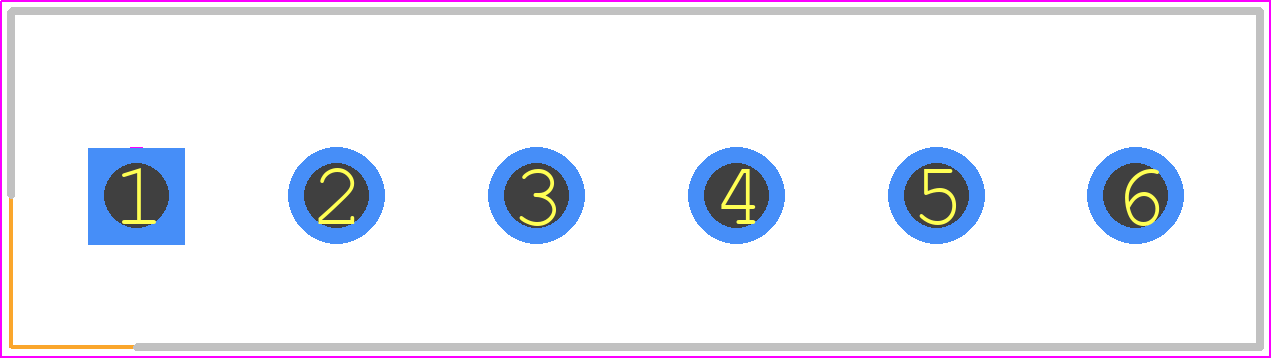

31320106 - Metz Connect PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 31320106
click to zoom
3D Models
31320106 - Metz Connect - 3D model - Header, Shrouded - Straight PTH Box - 31320106
click to zoom

31320106 Details

  • Manufacturer Part Number:

    31320106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    METZ CONNECT USA

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0, PA66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    800 V

  • Safety Approval:

    CUL; SEV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

31320106 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 31320106 connector is -40°C to 105°C, according to METZ CONNECT USA's specifications.
  • Yes, the 31320106 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 31320106 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
  • Yes, the 31320106 connector is designed for automated assembly processes, featuring a pick-and-place compatible design and a secure locking mechanism.
  • The 31320106 connector has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

31320106 Overview

Use the download button to access the 31320106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31320, or try a keyword search, such as Terminals and Terminal Blocks
