The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
Yes, the 31386-2001 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 31386-2001 is -40°C to 105°C (-40°F to 221°F).
Yes, the 31386-2001 is designed for outdoor use and can withstand exposure to moisture and humidity.
No, the 31386-2001 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
31386-2001 Overview

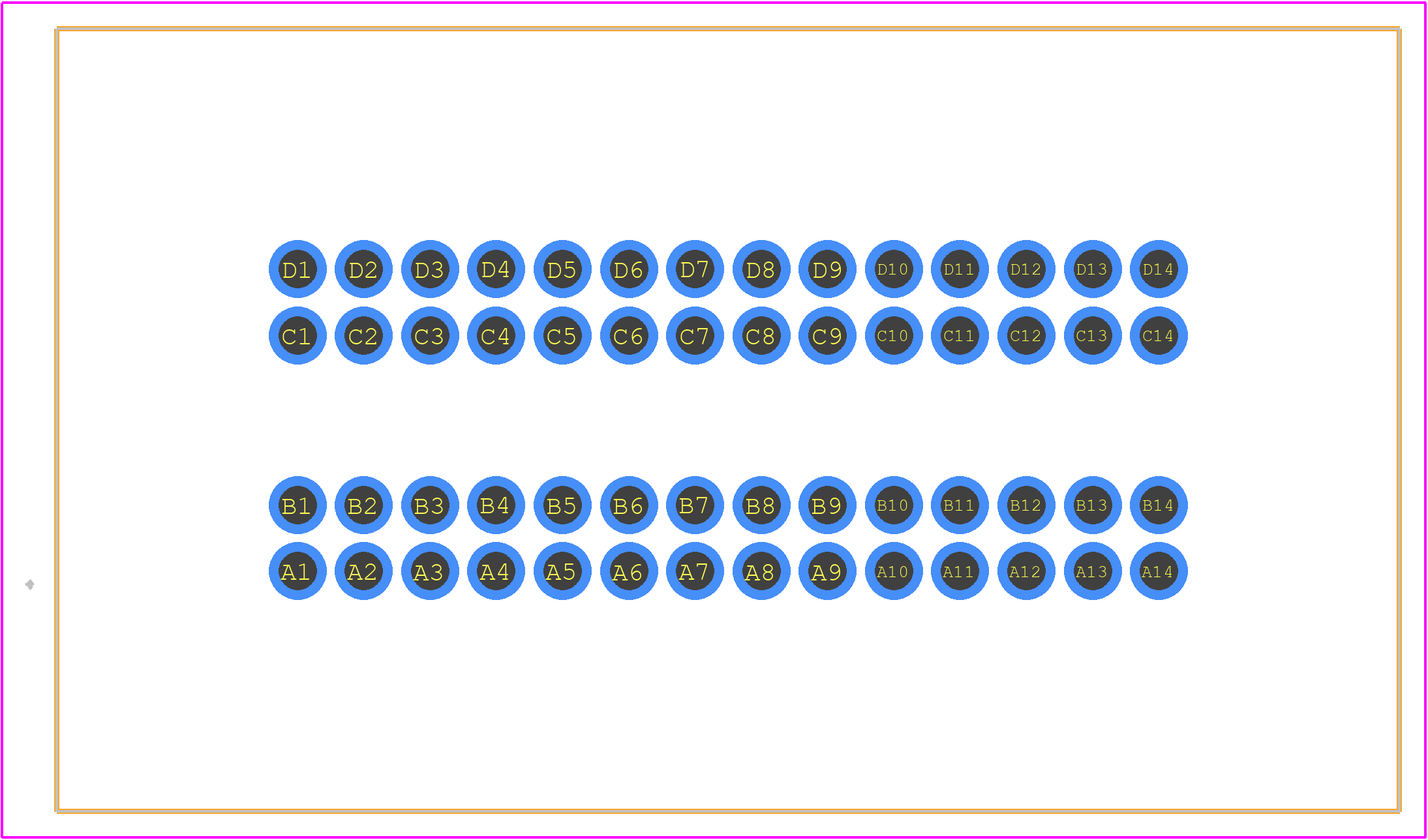

Use the download button to access the 31386-2001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31386,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
