The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Yes, the 31387-2003 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the connector is rated for outdoor use, with an operating temperature range of -40°C to 105°C (-40°F to 221°F) and a moisture rating of IP67.
The 31387-2003 connector is designed for wire sizes ranging from 24 AWG to 16 AWG.
Yes, the connector is suitable for use with stranded wire, but it's recommended to use a wire with a minimum strand count of 10.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
31387-2003 Overview

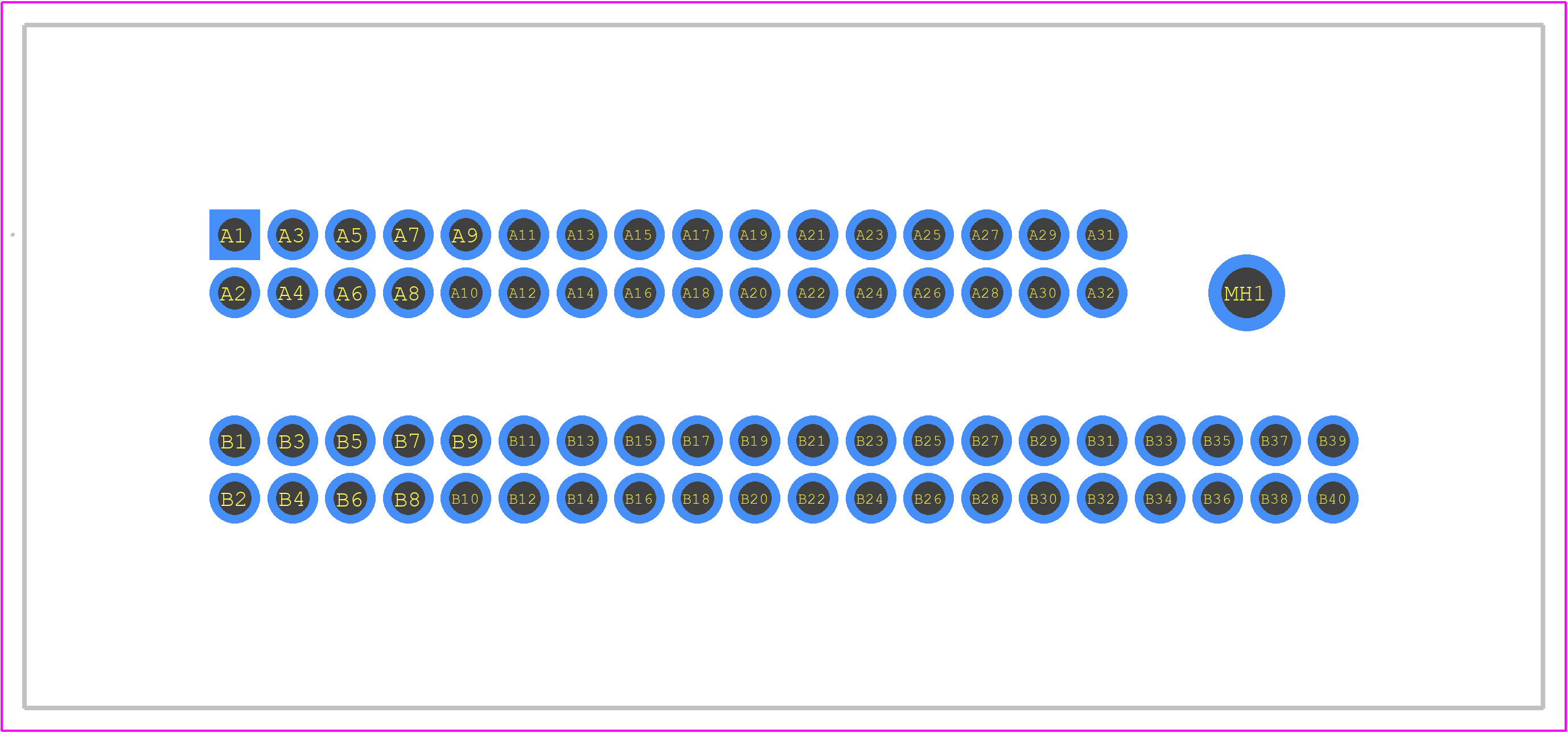

Use the download button to access the 31387-2003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31387,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
