Part Image

31387-4001 - Molex

Description: Automotive Connectors MX123 HDR 80CKT SHRD KEY H BLUE GLD

Download 31387-4001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
31387-4001 - Molex - PCB symbol
click to zoom
PCB Footprints

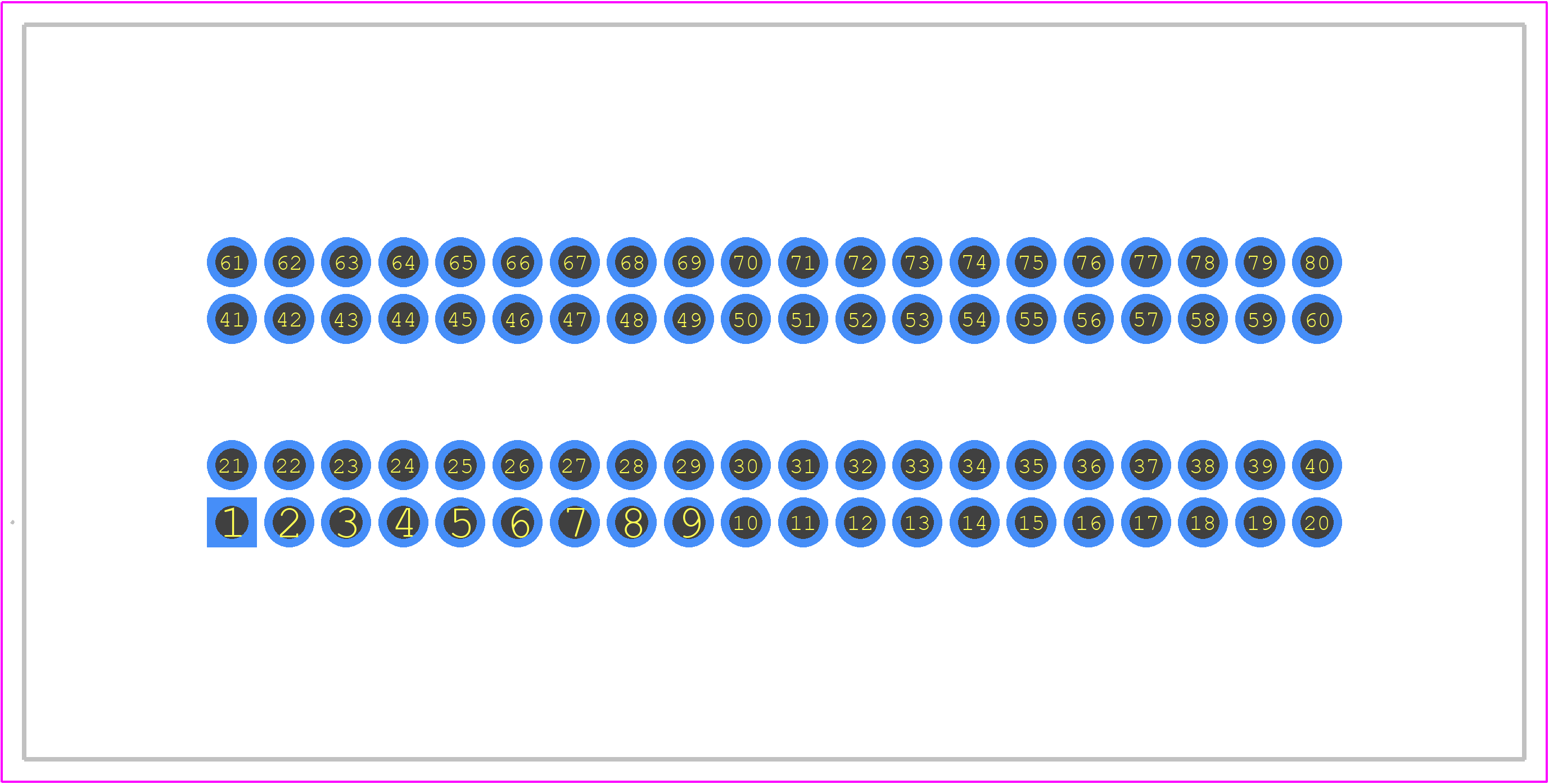

31387-4001 - Molex PCB footprint - Other - Other - 31387-4001-1
click to zoom
3D Models
31387-4001 - Molex - 3D model - Other - 31387-4001-1
click to zoom

31387-4001 Details

  • Manufacturer Part Number:

    31387-4001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.75

31387-4001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 31387-4001 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 31387-4001 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 31387-4001 is designed to meet the requirements of IEC 60529 IP67, which means it is protected against dust and water ingress, and can withstand exposure to chemicals and high humidity.
  • The mating cycle life of the 31387-4001 is 500 cycles minimum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

31387-4001 Overview

Use the download button to access the 31387-4001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31387, or try a keyword search, such as Combination Line Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
