The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 31387-4017 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The 31387-4017 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 31387-4017 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
Yes, when designing the PCB layout, ensure that the connector is placed in a way that allows for easy access and mating. Also, consider the connector's footprint and keep the PCB traces and components away from the connector's mating area to prevent interference and ensure reliable connections.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
31387-4017 Overview

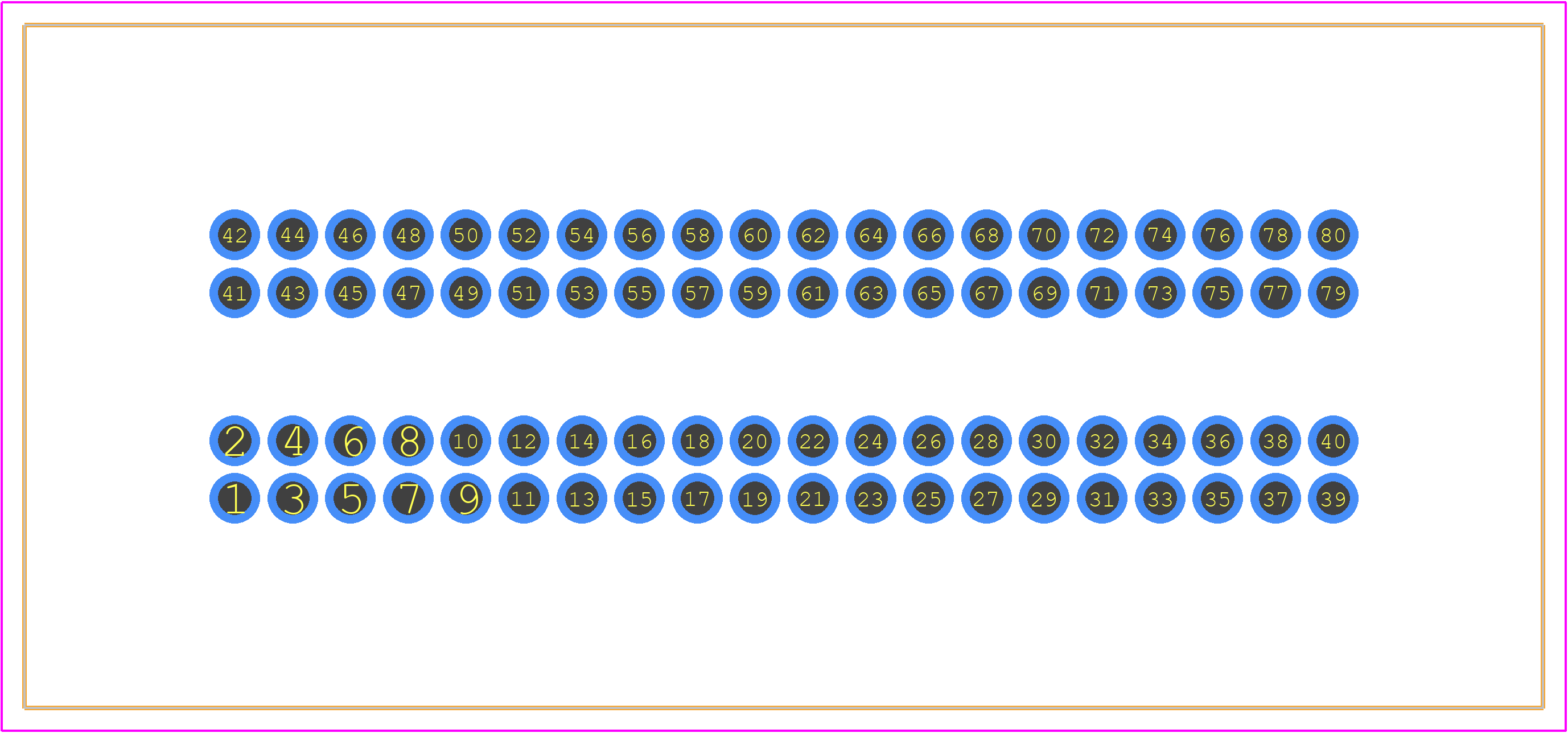

Use the download button to access the 31387-4017 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31387,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
