Part Image

316229-3 - TE Connectivity

Description: 0.8 FH PLUG ASSY 80P R/ANGLE

Download 316229-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

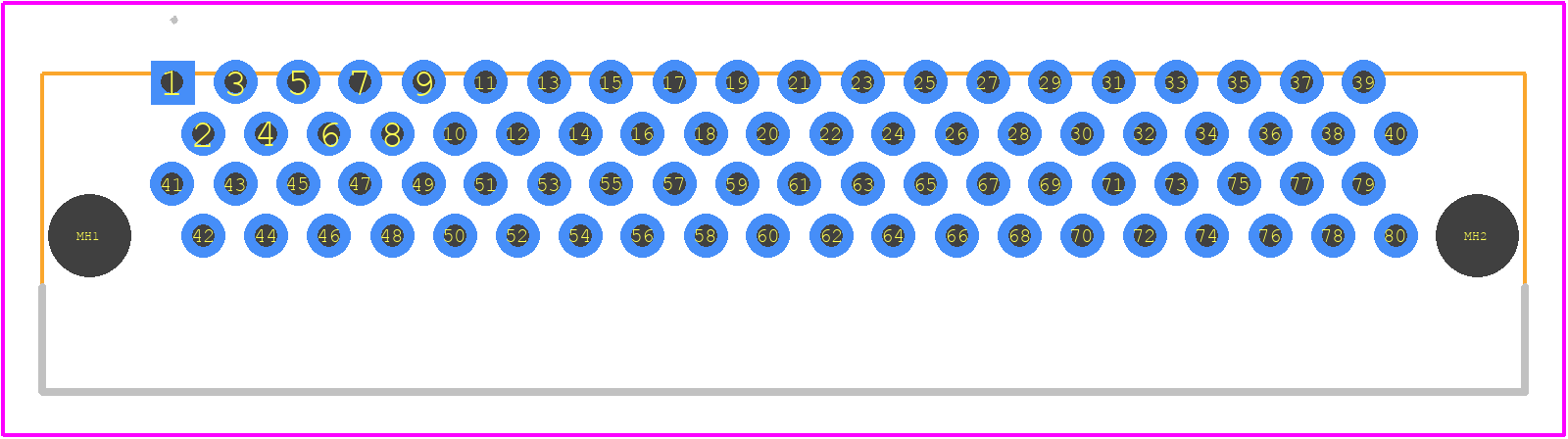

316229-3 - TE Connectivity PCB footprint - Other - Other - 316229-3-1
click to zoom
3D Models
316229-3 - TE Connectivity  - 3D model - Other - 316229-3-1
click to zoom

316229-3 Details

  • Manufacturer Part Number:

    316229-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    23 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.87

  • Board Mounting Option:

    PEG

  • Body Depth:

    0.202 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    2000000 Ω

  • Insulator Color:

    NATURAL

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    11.81u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.093 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

316229-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals of 316229-3 is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 316229-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
  • The 316229-3 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using it in outdoor or harsh environments to maintain its performance and reliability.
  • The 316229-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 316229-3 connector is designed to be compatible with other TE Connectivity products and systems. It's part of the TE Connectivity's modular connector family, which allows for easy integration with other TE products and systems.
