- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 3208694
- Part Number 3208694
- Manufacturer Phoenix Contact
- Pin Count 16
- Part Category Connector
- Package Category Other

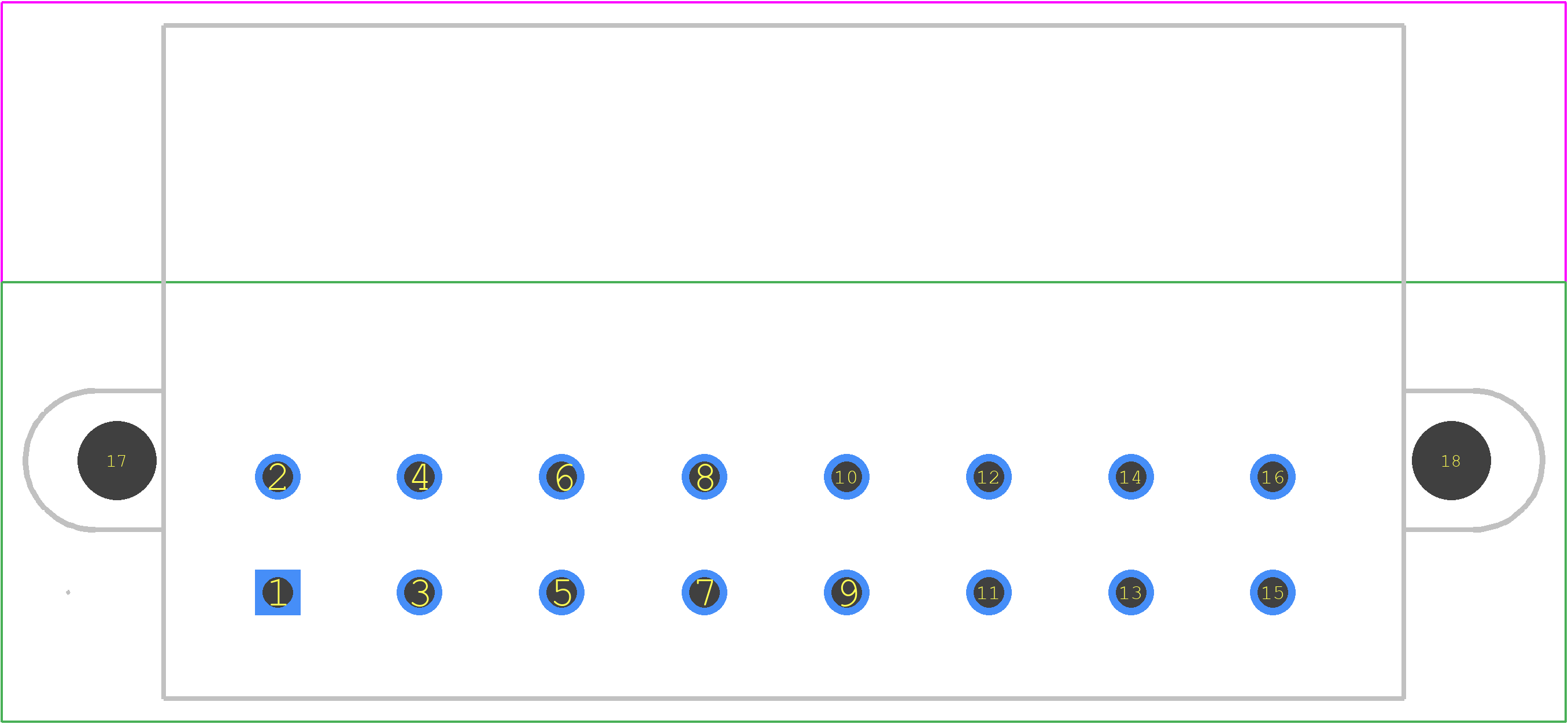

- Footprint Name Other - 3208694-2
- Released Date Feb 3, 2026
- Last Modified Date Jul 21, 2026 5:19 AM UTC
- Pinout / Pin List Click Here (Member Only)
3208694 Details
-
Manufacturer Part Number:
3208694
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Poland
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Phoenix Contact
-
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
3208694 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
-
Yes, the 3208694 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
-
The 3208694 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use or exposure to harsh environmental conditions.
-
While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure that the wire gauge meets the connector's minimum and maximum wire size specifications to maintain reliable connections and prevent damage to the connector or wire.
-
To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and ensure that the connector is properly aligned and seated during connection and disconnection.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
3208694 Overview
Use the download button to access the 3208694 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 32086,
or try a keyword search, such as Terminals and Terminal Blocks
About Phoenix Contact
Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
